Intel D850MV P4 i850 Rambus Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

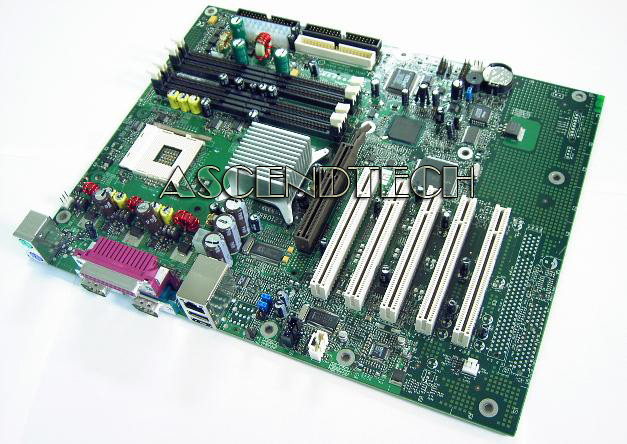

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB4INTD850MV
BrandIntel
ModelD850MV
CategoryIntel P4 / Celeron 478-Pin Motherboards

Description

The Intel D850MV i850 P4 S.478 400/533FSB Desktop Motherboard harnesses the advanced computing power of the latest Intel Pentium® 4 processors. Designed for Gateway OEM with Intel technology brings new levels of performance to the desktop by combining support for an 533MHz system bus with Rambus RDRAM Memory Support. Intel Performance Acceleration Technology helps to improve performance by reducing memory latencies.

Manufacturer: Intel
Type of Motherboard: Standard ATX
Socket: 478
Expansion Slots: 5 PCI, 1 AGP, 4 RIMM
Chipset: Intel i850
Front Side Bus Speed: 533Mhz FSB
Supported CPUs: P4 1.0Ghz-3.5GHz, 256/512K Cache Chips with 400/533MHz FSB Socket 478 Celeron 1.7GHz-2.4GHz Socket 478
Connectors: PS/2 Mouse, PS/2 Keyboard/ Printer Port, (4) USB Ports, 1 COMM Ports, 10/100 LAN
Supported Memory: PC600/800/1300 184PIN RAMBUS Memory
Operating Systems: Windows 98, ME, 2000, XP and NT
Packing: OEM (No Backplate!)

Detailed Specifications:

Form FactorATX 12.00 × 9.60 inches
Processor478-pin zero insertion force (ZIF) socket supporting:

  • Intel® Pentium® 4 processor
  • Up to 533-MHz system data bus (System data bus speed is determined by the processor. The minimum speed for the Pentium 4 is 400 MHz.)
Memory
  • Two Direct-RDRAM channels with two RIMMs per channel (four RIMM sockets)

  • Support for up to 2 GB of system memory using PC800 or PC1066 RDRAM
ChipsetIntel 850 chipset, consisting of:

  • Intel 82850E MCH

  • Intel 82801BA ICH2

  • Intel 82802AB 4-Mb FWH
I/O ControlSMSC LPC47M142 LPC bus I/O controller
VideoAGP connector supporting 1.5-V 4X AGP cards only
Peripheral Interfaces
  • 4 USB ports
  • One serial port
  • One parallel port
  • Two IDE interfaces with Ultra DMA 33 and ATA-66/100 support
  • One disk drive interface
  • PS/2 keyboard and mouse ports
Expansion CapabilitiesFive PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
BIOS
  • AMI BIOS (resident in the Intel 82802AB 4-Mb FWH
  • Support for APM, ACPI, Plug and Play, and SMBIOS
Instantly Available PC
  • Support for PCI Local Bus Specification revision 2.2.
  • Suspend to RAM support
  • Wake on PCI, CNR, RS-232, front panel, PS/2 keyboard, and USB ports
LAN Wake CapabilitiesSupport for system wake-up using an add-in network interface card with remote wake-up capability via the PME# signal
Hardware Monitor
  • Voltage sense to detect out-of-range power supply voltages
  • Thermal sense to detect out-of-range thermal values
  • Fan control and monitoring
Hardware Monitoring FeaturesTwo fan sense inputs used to monitor fan activity
LANIntel 82562ET 10/100 Mbps Platform LAN Connect (PLC) device
USB 2.0Support for USB 2.0 devices

The USB 2.0 option is supported on the front USB ports and the two rear USB ports under the NIC. At this time, this option is only supported in Windows® XP and Windows 2000 with installed drivers.

LBASupport for 48-bit Logical Block Addressing (LBA)
