Intel D875PBZ P4 533/800FSB Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

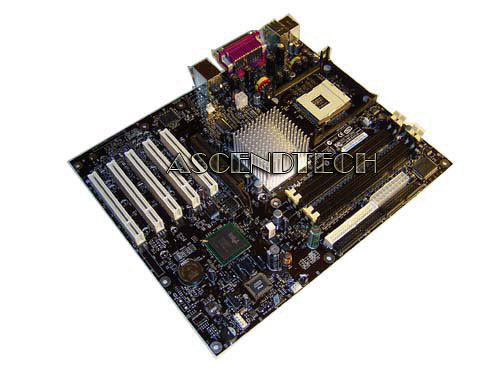

Intel D875pbz P4 533/800Fsb Motherboard. Model: D875pbz D875p
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4INTD875PKIT
Brand Intel
Model D875PBZ D875P
Category Intel P4 / Celeron 478-Pin Motherboards

Description

The Intel® D875P 400/533/800FSB Chipset Desktop Motherboard harnesses the advanced computing power of the latest Intel Pentium® 4 processors supporting Hyper-Threading Technology. Designed for Gateway OEM with Intel® RAID Technology brings new levels of performance to the desktop by combining support for an 800MHz system bus with dual-channel DDR-400 and native SATA 150. Intel Performance Acceleration Technology helps to improve performance by reducing memory latencies.

Specifications:

Specifications
Form FactorATX form factor - 11.52 × 9.6 inches (292.61 × 243.84 mm)
Processor
  • Support for an Intel® Pentium® processor in an mPGA478 socket with a 400/533/800-MHz system bus
  • Support for an Intel Celeron® processor in an mPGA478 socket with a 400-MHz system bus
    • Memory
  • Four 184-pin DDR SDRAM DIMM sockets
  • Support for DDR 400, DDR 333, and DDR 266
  • Support for up to 4 GB of system memory
    • ChipsetIntel 875P Chipset, consisting of:
    • Intel 82875P Memory Controller Hub (MCH)
    • Intel 82801ER I/O Controller Hub (ICH5-R)
    • Intel 82802AC (8Mbit) Firmware Hub (FWH)
    VideoUniversal 0.8/1.5-V AGP 3.0 connector (with integrated retention mechanism) supporting 1X,, 4X, and 8X AGP cards
    USBSupport for USB 2.0 devices
    LBASupport for 48-bit Logical Block Addressing (LBA)
    Peripheral Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Two serial ATA IDE interfaces
  • Two parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One disk drive interface
  • PS/2 keyboard and mouse ports
    • Expansion CapabilitiesFive PCI bus add-in card connectors
    I/O ControlLPC Bus I/O controller
    LANIntel 82547EI Platform LAN Connect (PLC) device for Gigabit (10/100/1000 Mbps) Ethernet LAN connectivity
    BIOS
  • Intel/AMI BIOS (resident in the Intel 82802AC FWH)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    • Instantly available PC technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Suspend to RAM support
  • Wake on PCI, ES-232, front panel, PS/2 devices, and USB ports
