INTEL D915 LGA775 800FSB PCIe X16 MBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Intel D915 Lga775 800Fsb Pcie X16 Mboard. Model: D915g 915G Pentium 4

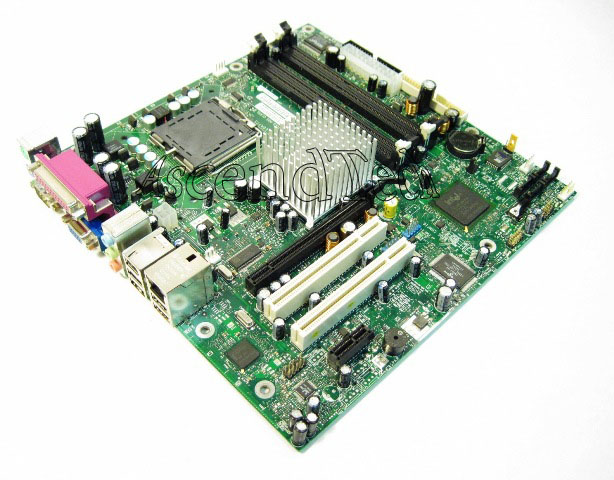

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4INTD915GPCIE
Brand Intel
Model D915G 915G PENTIUM 4
Category Intel Lga775 Motherboards

Description

Intel 915G Chipset Socket LGA775 PCI-Express X16 DDR400 UpTo 4GB RAM 533/800MHz FSB Motherboard With OnBoard Video / Audio & LAN! For Intel Pentium 4 & Celeron Processors.

Specifications:

Download Drivers Here

*Please Note, Rear I/O Shield (Back-plate Cover) Does Not Come With This Particular Motherboard Model!

Form FactormicroATX Form Factor (9.60 × 9.60 inches [243.84 × 243.84 millimeters]
ProcessorSupport for an Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Memory
  • Four DDR SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR 400 MHz and DDR 333 MHz DIMMs
  • Support for up to 4 GB of system memory
ChipsetIntel® 915G Chipset, consisting of:
  • Intel® 82915G Graphics Memory Controller Hub (GMCH)
  • Intel® 82801FB I/O Controller Hub (ICH6)
  • 4-Mbit Firmware Hub (FWH)
VideoIntel® GMA900 onboard graphics subsystem
AudioIntel® High Definition Audio subsystem using the Realtek ALC860 audio codec
I/O ControlSupport for USB 2.0 devices
Peripheral Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Four Serial ATA interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
LAN Support10/100 Mbits/sec LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device
BIOS
  • Intel/AMI BIOS (resident in the 4 Mbit FWH)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology
  • Support for PCI Local Bus Specification Revision 2.2
  • Support for PCI Express Revision 1.0a
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Expansion Capabilities
  • Two PCI Conventional bus connectors
  • One PCI Express x1 bus add-in card connector
  • One PCI Express x16 bus add-in card connector
Hardware Monitor Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan connectors
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control
Other FeaturesHeceta 6e; Intel® Precision Cooling Technology
