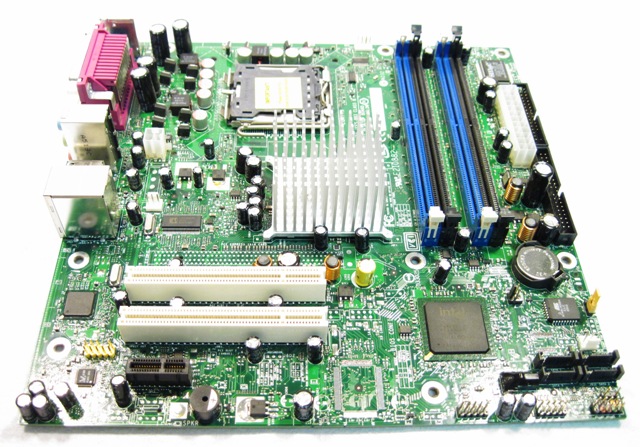

Intel D915GVWB/D910GLDW OEM Motherboard

Intel D915GVWB / D910GLDW LGA775 OEM Replacement Motherboard. Intel Part number: C82205-104. The Intel board harnesses the advanced computing power of the latest Intel Pentium 4 LGA775 processor supporting Hyper-Threading Technology. This desktop board brings exciting new levels of performance and features to the desktop by combining DDR-2 memory support.

Specifications:

Form Factor: microATX Form Factor (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor: Support for an Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Memory:
• Four DDR SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for DDR 400 MHz and DDR 333 MHz DIMMs
• Support for up to 4 GB of system memory
Chipset:
Intel® 915GV Chipset, consisting of:
• Intel® 82915GV Graphics Memory Controller Hub (GMCH)
• Intel® 82801FB I/O Controller Hub (ICH6)
• 4 Mbit Firmware Hub (FWH)
Video: Intel® GMA900 onboard graphics subsystem
Audio: Intel® High Definition Audio subsystem using the Realtek ALC860 audio codec
I/O Control: LPC Bus I/O controller
USB: Support for USB 2.0 devices

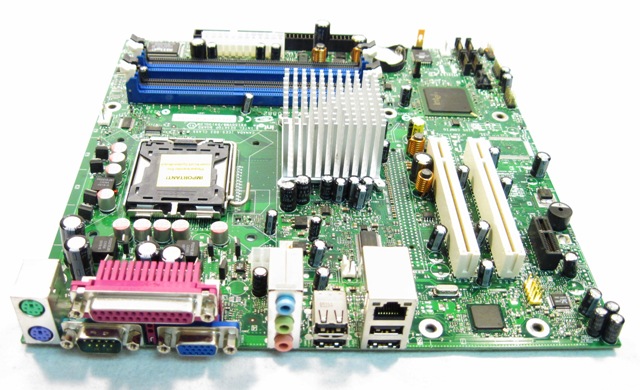

Peripheral Interfaces:
• Eight USB ports
• One serial port
• One parallel port
• Four Serial ATA interfaces
• One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
• One diskette drive interface
• PS/2* keyboard and mouse ports
LAN Support: 10/100 Mbits/sec LAN subsystem using the Intel 82562EZ platform LAN Connect (PLC) device
BIOS:
• Intel/AMI BIOS (resident in the 4 Mbit FWH)
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology:
• Support for PCI Local Bus Specification Revision 2.2
• Support for PCI Express Revision 1.0a
• Suspend to RAM support
• Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Expansion Capabilities:
• Two PCI Conventional bus add-in card connectors (SMBus routed to PCI
Conventional bus connector 2)
• One PCI Express x1 bus add-in card connector
Hardware Monitor Subsystem:
• Hardware monitoring and fan control ASIC
• Voltage sense to detect out of range power supply voltages
• Thermal sense to detect out of range thermal values
• Three fan connectors
• Three fan sense inputs used to monitor fan activity
• Fan speed control
