Intel D945GCCR LGA775 Motherboard NO I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

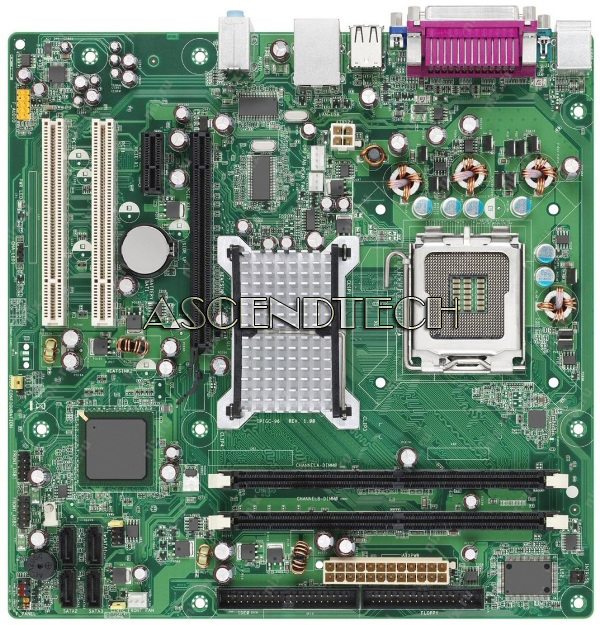

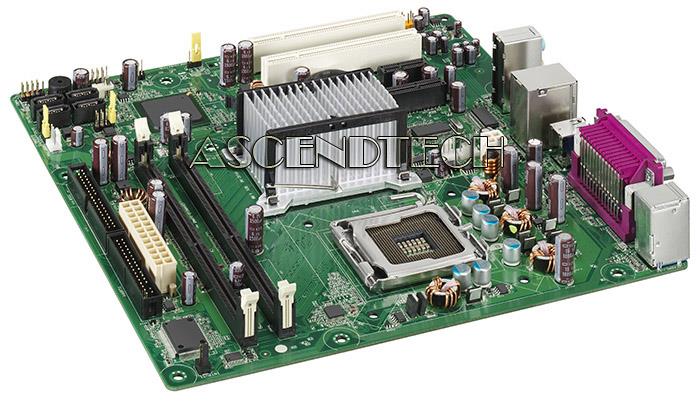

Intel D945gccr Lga775 Motherboard No I/O

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code MB775IND945GCCR

Brand Intel

Model D78647-304 D945GCCR

Category Intel Lga775 Motherboards

Description

Intel D945GCCR LGA775 CPU Socket 945GC Chipset DDR2 Intel Graphics Micro ATX Desktop Motherboard. The Intel Desktop Board D945GCCR Essential Series offers a cost-efficient integrated graphics solution. This board is designed for Intel Core 2 Duo, Intel Pentium D, Intel Pentium 4 and Intel Celeron D processors supporting up to 800/533 MHz system bus in the LGA775 package. Other features include PCI Express* x16 graphics connector, dual-channel DDR2 533/400 MHz SDRAM, Intel Graphics Media Accelerator 950 (Intel GMA 950), integrated Intel PRO 10/100 Network Connection, Intel® High Definition Audio (Intel HD Audio) and up to eight USB 2.0 ports.

Please Note, this Motherboard is new, but it comes in OEM Packaging and does not include the I/O Shield or any other accessories.

Specifications:

Form Factor	microATX: 9.60 × 9.60 inches (243.84 × 243.84 mm)
Processor Support	Intel® Core™2 Duo processor in an LGA775 socket with a 800 MHz system bus Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus
Memory	Two memory slots support the following: 240-pin DDR2 533 or DDR2 400 MHz SDRAM dual inline memory modules (DIMMs) 1.8 V (only) non-ECC DIMMs with gold-plated contacts Unbuffered, single-sided or double-sided DIMMs with the following restriction: Double-sided DIMMS with x16 organization are not supported Serial Presence Detect 128 MB minimum total system memory 2 GB maximum total system memory
Chipset	Intel 945GC Chipset, consisting of: Intel 82945GC Graphics Memory Controller Hub (GMCH) Intel 82801GB I/O Controller Hub (ICH7)
Video	Intel GMA950 onboard graphics subsystem
Audio	6-channel (5.1) audio subsystem with three analog audio outputs using the Realtek ALC883 audio codec
Legacy I/O Control	Legacy I/O controller for diskette drive, serial, parallel, and PS/2 ports devices

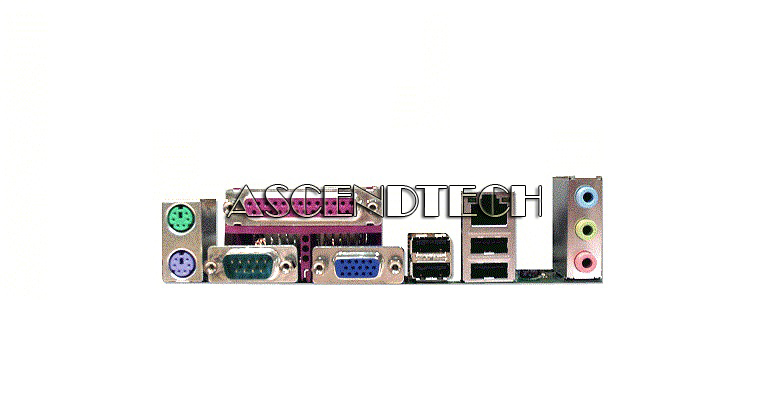

Peripheral Interfaces	Eight USB ports One serial port One parallel port Four Serial ATA interfaces One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support One diskette drive interface PS/2 keyboard and mouse ports
LAN Support	10/100 Mbits/sec LAN subsystem using the Intel 82562G Platform LAN connect (PLC) device
BIOS	Intel BIOS (resident in the SPI Flash device) Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Add-In Card Slots	Two PCI Conventional bus connectors One PCI Express x1 bus add-in card connector One PCI Express x16 bus add-in card connector
Hardware Monitor Subsystem	Hardware monitoring and fan control through the SMSC 5127 I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers Three fan sense inputs used to monitor fan activity Fan speed control
Included	Intel D945GCCR Motherboard only

Please Note, this Motherboard is new, but it comes in OEM Packaging and does not include the I/O Shield or any other accessories.
