INTEL D945GCL 1066FSB DDR2 PCIe X16 SATA

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Intel D945gcl 1066Fsb Ddr2 Pcie X16 Sata. Model: D945gcl Lga775 Pci-Expres

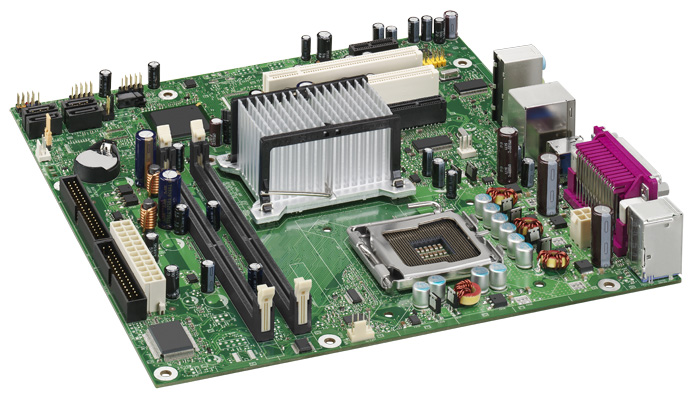

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4INTD945GCL
Brand Intel
Model D945GCL LGA775 PCI-EXPRES
Category Intel Lga775 Motherboards

Description

The Intel® Desktop Board D945GCL / Essential Series offers a cost-efficient integrated graphics solution. This board is designed for the Intel® Core™2 Duo, Intel® Pentium® D, Intel® Pentium® 4 and Intel® Celeron® D supporting up to 1066/800/533 MHz system bus in the LGA775 package. Other features include PCI Express* x16 graphics connector, dual-channel DDR2 667/533 MHz SDRAM, Intel® Graphics Media Accelerator 950 (Intel® GMA 950), integrated Intel® PRO 10/100 Network Connection, Intel® High Definition Audio and up to eight USB 2.0 ports.



*Please Note - This Is An OEM System Builders Replacement Motherboard, And It Does Not Come With Rear I/O Shield (Back Plate) Cover For Motherboard. These Boards Are Made For Gateway And Will Show Gateway Logo At The Boot Up.

Specifications:

FeatureSpecification
PackageOEM - Motherboard Only (No Backplate / I/O Shield)
Form FactormicroATX 9.6 × 9.6 inches
Processor
  • Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus
  • Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus
  • Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
  • Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus
Memory
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
  • Support for up to 4 GB of system memory
ChipsetIntel® 945G Chipset, consisting of:
  • Intel® 82945G Graphics Memory Controller Hub (GMCH)
  • Intel® 82801GB I/O Controller Hub (ICH7)
VideoIntel® GMA950 onboard graphics subsystem
Audio6-channel (5.1) audio subsystem with three analog audio outputs using the Sigmatel 9220 audio codec
Legacy I/O ControlLegacy I/O controller for diskette drive, serial, parallel, and PS/2 ports
USBSupport for USB 2.0 devices
Peripheral Interfaces
  • Eight USB ports
  • One serial port
  • One parallel port
  • Four Serial ATA interfaces
  • One Parallel ATA IDE interface
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
LAN Support10/100 Mbits/sec LAN subsystem using the Intel® 82562G Platform LAN Connect (PLC) device
BIOS
  • Intel® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Expansion Capabilities
  • Two PCI Conventional bus connectors
  • One PCI Express ×1 bus add-in card connector
  • One PCI Express ×16 bus add-in card connector
Instantly Available PC Technology
  • Support for PCI Local Bus Specification Revision 2.3
  • Support for PCI Express Revision 1.0a
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Hardware Monitor Subsystem
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan headers
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control
