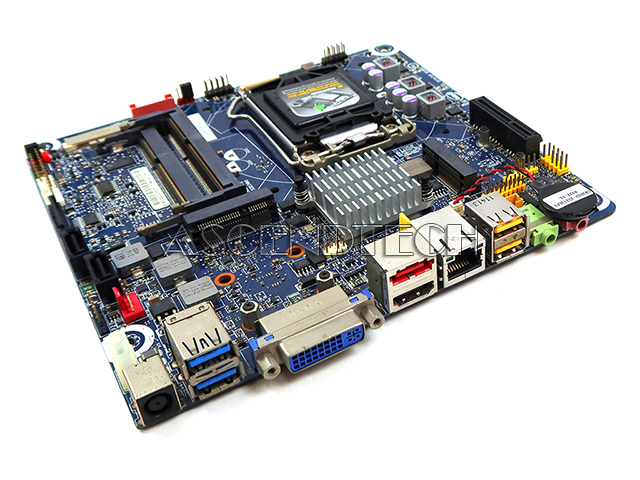

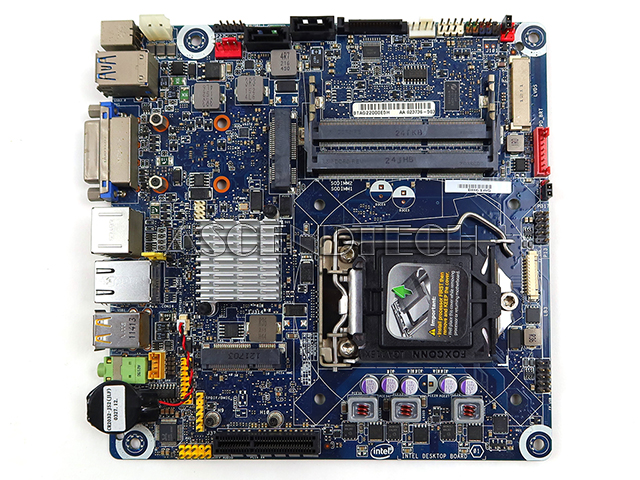

Intel Desktop Motherboard G23736-504
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSING23736504
Brand Intel
Model DH61AG
Part Number G23736-504
Category Intel Lga1155 Motherboard
Condition Pre-Owned Grade B
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover or any other accessories. This item is used and has minor scuffs and scratches, but is fully operational and functions as intended!
Description
Intel DH61AG Chipset H61 Express LGA1155 Socket DDR3 SDRAM Thin Mini-ITX Desktop Motherboard G23736-504.
Chipset: Intel H61 Express
Socket: LGA1155 Socket
Compatible/Supported CPU: Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium, Intel Celeron, and Intel Xeon processors in an LGA1155 socket with up to 65 W TDP
Max Supported Memory: Up to 16GB
Number of Memory Slots: 2
Memory Type: DDR3 SDRAM
Speed: 1066/1333 MHz/s
Storage Interface: SATA 3Gb/s
Video Chipset/GPU Model: Intel HD Graphics 2000/3000/4000 (CPU-dependent)
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Network/Communications: Intel 82579V Gigabit PCIe
Audio: High Definition Audio (10-channel) Realtek ALC892
Connectors: 2x SATA2 3.0 GB/s; 1x SATA power connector; 1x LVDS pin header (24-bit, dual channel); 1x LVDS inverter; 2x USB 2.0 pin headers for 4 USB ports; 1x USB 2.0 pin header (5-pin); 1x Embedded DisplayPort (eDP); 1x S/PDIF-out pin header; 1x HTPC pin header; 1x Speaker pin header; 1x Front panel pin header; 1x Front audio pin header; 2x Fan pin headers; 1x 2-pin Internal power connector
Input/Output Ports: 2x USB 3.0; 2x USB 2.0; 1x eSATA; 1x RJ-45; 1x DVI-I; 1x HDMI; 2x Audio Jacks; 1x 19 V power connector
Expansion Slots: 1x PCI-E 3.0 x4; 1x PCI-E Mini Card; 1x Half-height mPCIe slot
Form Factor: Thin Mini-ITX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 7 32 and 64-bit
