Intel DG43NB Mboard E34877-405 No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Intel Dg43nb Mboard E34877-405 No I/O
  Enlarge
Intel Dg43nb Mboard E34877-405 No I/O
Intel Dg43nb Mboard E34877-405 No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBINTDG43NBNOIO
Brand Intel
Model DG43NB
Part Number E34877-405
Category Intel Lga775 Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover, or any other accessories! Motherboard only!

Description

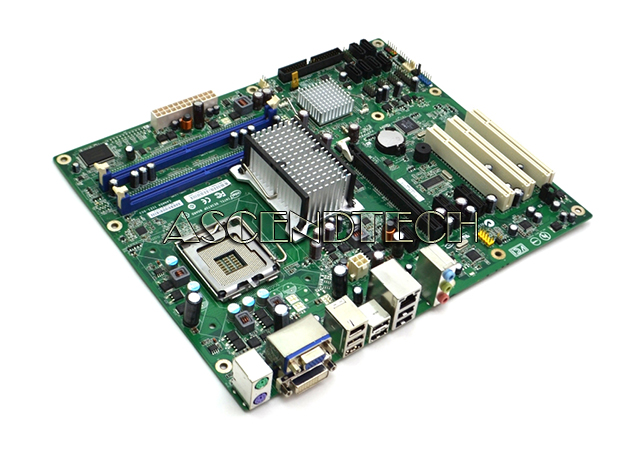

Intel DG43NB Express Chipset G43 Socket LGA775 DDR2 USB 2.0 SATA 3Gb/s ATX Desktop Motherboard E34877-405. The Intel Desktop Board DG43NB delivers new levels of performance and enhanced multimedia enjoyment in the ATX form factor supporting Intel Core2 Quad and Intel Core2 Duo processors. The board also offers exciting premium features such as Intel HD Video, Intel High Definition Audio, integrated 10/100/1000 Network connection, ample USB ports and IEEE 1394a for consumers to enjoy a great digital entertainment experience. The Intel Desktop Board DG43NB is Microsoft Windows Vista Premium Ready and the Intel 4 Series Chipset fully supports the visually stunning Windows Aero user interface.

Chipset: Intel G43 Express
Socket: Intel LGA775
Compatible/Supported CPU: Intel Core 2 Quad / Intel Core 2 Duo / Intel Pentium Dual-Core / Intel Celeron Dual-Core / Intel Celeron
Max Supported Memory: Up to 4GB
Number of Memory Slots: 2 DIMM
Memory Type: DDR2 SDRAM
Pins: 240-pin
Speed: 800/667 MHz
Voltage: 1.8 V
Video Chipset/GPU Model: Intel GMA X4500
Network/Communications: Intel 82567LV Gigabit (10/100/1000 Mb/s) Ethernet
Audio: RealTek ALC888VC audio codec
Connectors: 6x SATA, 3x dual-port USB internal headers, 2x chassis fan headers, 1x Chassis intrusion header, 1x S/PDIF header, 1x CPU fan header, 1x main power connector, 1x IDE connector, 1x Serial header, 1x Front panel header, 1xAlternate front panel power LED header, 1x IEEE 1394a header, 1x HD audio link header, 1x 12 V processor core voltage connector
Input/Output Ports: 2x PS/2, 6x USB 2.0, 1x VGA, 1x DVI-D, 1x IEEE 1394a, 1x RJ-45, 1x Audio Line-In, 1x Audio Line-Out, 1x Microphone
Expansion Slots: 1x PCI-Express 2.0 x16, 3x PCI-Express 1.1 x1, 3x PCI
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows Vista Ultimate, Microsoft Windows Vista Enterprise, Microsoft Windows Vista Business, Microsoft Windows Vista Home Premium, Microsoft Windows Vista Home Basic, Microsoft Windows Vista Ultimate 64-bit edition, Microsoft Windows Vista Enterprise 64-bit edition, Microsoft Windows Vista Business 64-bit edition, Microsoft Windows Vista Home Premium 64-bit edition, Microsoft Windows Vista Home Basic 64-bit edition, Microsoft Windows* XP Media Center Edition 2005, Microsoft Windows XP Professional, Microsoft Windows XP Professional x64 Edition, Microsoft Windows XP Home.

Features:

Intel Classic Series Desktop Boards Product Highlight
Reliable and stable, Intel Desktop Boards Classic Series are perfectly suited to the needs of the mainstream home, office and educational user who need to interact online and run today's popular applications efficiently and with a good level of responsiveness. Harnessing the efficient performance of Intel's value-focused dual- and quad-core processors, Intel Classic Series Desktop Boards combine offer real value and reliability with the features required by today's mainstream users.

Audio
Utilizing the Intel High Definition audio chipset, the Intel Desktop Board DG43NB Classic Series can deliver up to 6-channel, 5.1 surround sound—no add-in audio card required.

Graphics
Integrated graphics made possible by Intel Graphics Media Accelerator X4500 provide VGA and DVI outputs and support a wide variety of displays and Microsoft Windows Vista Premium. Intel HD enables smooth and realistic visual experiences with new high-definition media. A PCI Express 2.0 x16 add-in slot provides the opportunity to integrate popular graphics cards, if additional 3D gaming graphics are desired.

Quad-Core Compatibility
With support for the latest Intel quad-core processors, the Intel Desktop Board DG43NB can deliver highly efficient performance when running many different types of mainstream applications. Multiple computing "brains" allow new multi-core processors to run multiple applications with phenomenal ease and superior responsiveness.
