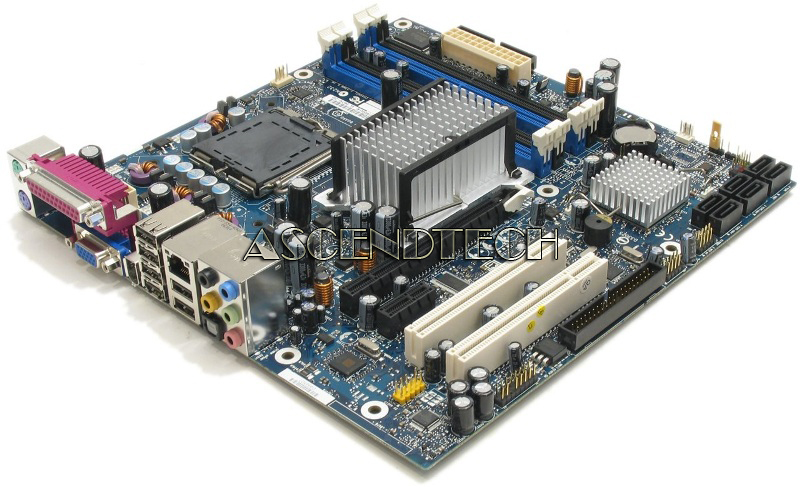

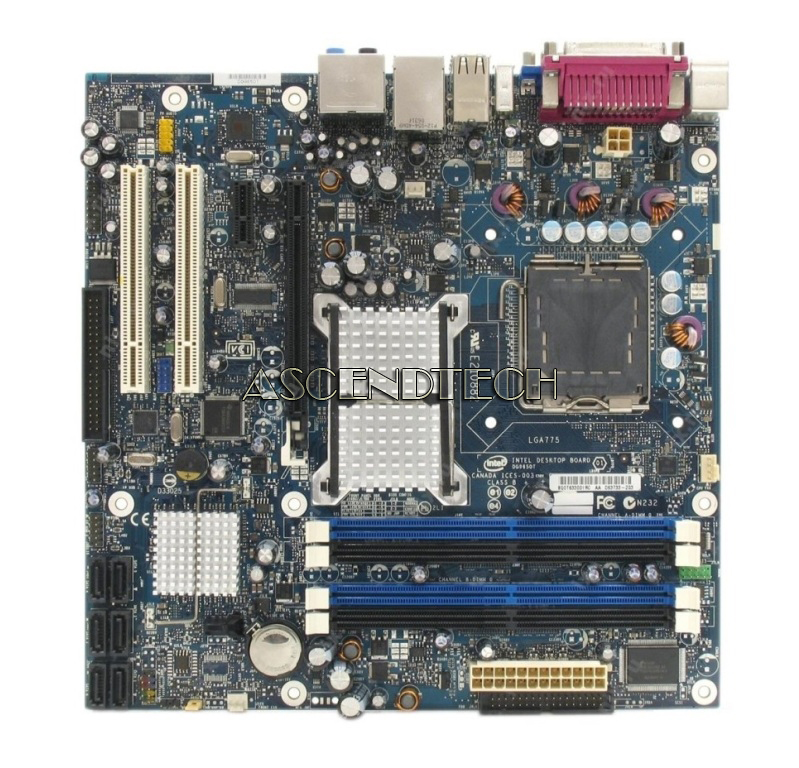

Intel DG965OT LGA775 G965 Motherboard

Intel DG965OT G965 Express Chipset Socket LGA775 PCI-Express X16 1066Mhz FSB Motherboard For Intel Core 2 Duo / Pentium D - Dual Core / Pentium 4 & Celeron D Processors (CPU) With 533/800/1066Mhz FSB.







Specifications:

Brand: Intel
Model: DG965OT
Part Number: D63733-205
CPU Socket Type: LGA775
Processor Support:
Intel Core 2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus
Intel Pentium D processor in an LGA775 socket with an 800 or 533 MHz system bus
Intel Pentium 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Intel Celeron D processor in an LGA775 socket with a 533 MHz system bus
Chipset: Intel DG965 Express
Memory: Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs
Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs
Support for up to 4 GB of system memory using DDR2 800 DIMMs
Support module sizes of 256 MB, 512 MB, 1 GB, or 2 GB
Audio: 8-channel (7.1) audio
Video: Intel GMA X3000 onboard graphics
LAN Support: Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82566DC Gigabit Ethernet Controller
Peripheral Interfaces:
6 external USB ports and two internal USB connectors supporting 2 connections each for a total of 10 USB connections
Two IEEE-1394a interfaces: one back panel connector and one front-panel header
Six Serial ATA IDE interfaces
One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
One diskette drive interface
Expansion Capabilities
One PCI Express ×16 bus add-in card connector
One PCI Express ×1 bus add-in card connectors
Two PCI Conventional bus connectors
Form Factor: microATX 9.6 inches × 9.6 inches
Included:
- Intel DG965OT Motherboard
- I/O Shield
- SATA Cable
- Floppy Drive Cable
- Driver CD and Manual
