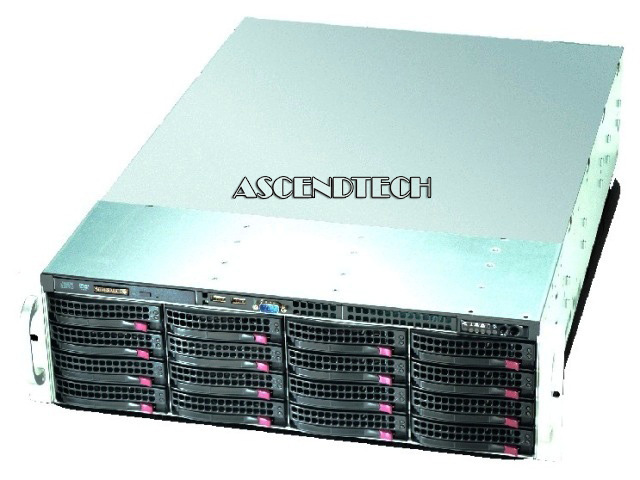

Custom server based on Supermicro's 6037R-E1R16N Dual Xeon LGA2011 Processor 3U Rackmount SuperStorage Server. Based on the Intel C602 chipset, the SUPERMICRO SSG-6037R-E1R16N server barebone is a high-end server that supports dual state-of-the-art Intel Socket R (LGA 2011) Xeon CPUs and up to 768 GB DDR3 ECC Registered memory, delivering stunning computing power to blaze through your most demanding applications. Four PCIe 3.0 x16 slots (1 in use), one PCIe 3.0 x8 slot and one PCIe 3.0 x4 (in x8) slot provide substantial I/O bandwidth for current and future needs. 4x Gigabit Ethernet LAN ports enable bottleneck-free data transfer. The chassis comes with 16x hot-swap 3.5" HDD bays for easy drive insertion and removal. Keeping everything cool is key to system reliability and stability. Three 8-cm hot-plug system cooling fans are pre-installed to ensure efficient ventilation. A redundant 920W PSU with 80 PLUS Gold certification delivers abundant and robust power for the whole system with superior energy efficiency.

Key Features:

1. Intel Xeon processor E5-2600 family; QPI up to 8GT/s
2. Up to 768GB DDR3 1600MHz ECC Registered DIMM; 24x DIMM sockets
3. 3x PCI-E 3.0 x16 and 1x PCI-E 3.0 x8 slots (Full-height, Full-length)
4. Intel i350 GbE Controller; 4x ports
5. 16x Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays
6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x Heavy duty PWM fans
9. 920W Redundant Power Supplies 80 PLUS, Platinum Level (94%)

Customize it! We offer an extensive selection of computer components through the convenient system configurators allowing to build broad spectrum of custom server systems up to the highly redundant and high-performance solutions. Starting configurations of our server systems include server platform, CPU, memory, hard drive and in some cases optical and floppy drives. By using the configurator located in this page you can upgrade components to fit this purchase into your budget and requirements. Besides the configurator, you can also add other components to your cart and we will install them as well. Our custom server systems come assembled and tested.
