Intel DX58SO Mboard E29331-705 No I/O

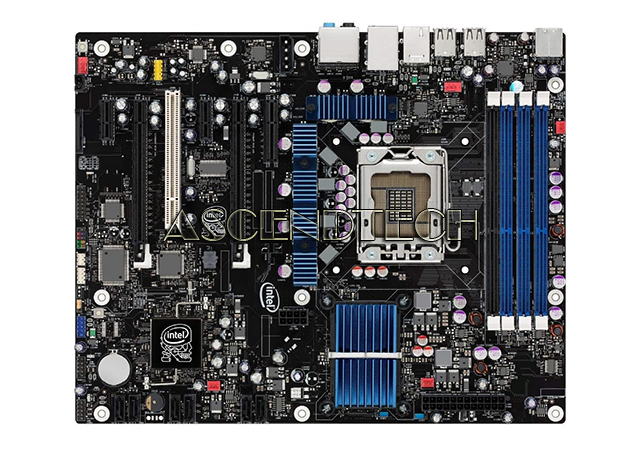

Intel DX58SO Socket LGA1366 Chipset X58 DDR3 ATX Desktop Motherboard E29331-705.

Part Number: E29331-705
Intel Model Number: DX58SO







Specifications:

Brand: Intel
Model: DX58SO
CPU Socket Type: LGA 1366
CPU Type: Core i7 (LGA1366)
Chipset: Intel X58
South Bridge: Intel ICH10R
Number of Memory Slots: 4×240pin
Memory Standard: DDR3 1600
Maximum Memory Supported: 16GB
Channel Supported: Triple Channel
Expansion Slots:
1 x CPU
4 x DIMM 240-pin
2 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCIe x1
1 x PCI

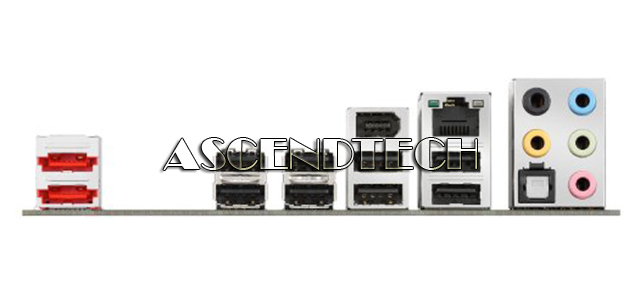

Interfaces
8 x USB 2.0
1 x FireWire - 6 pin FireWire
1 x LAN (Gigabit Ethernet)
2 x storage - eSATA
1 x TOSLINK
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (side surround) - mini-jack
Networking:
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller Intel 82567LM
Network Gigabit Ethernet
Storage Interfaces:
Intel ICH10R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface Provided:
Type storage
Interface eSATA
Qty 1, 2, 8
Type FireWire, LAN (Gigabit Ethernet), TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (side surround), microphone
Connector Type 6 pin FireWire, mini-jack
Audio:
Audio Codec Realtek ALC889
Audio Output:
Sound Output Mode 7.1 channel surround
Type sound card
Audio Codec Realtek ALC889
Audio High Definition Audio (8-channel)
Supported Ram:
Bus Clock 1600 MHz, 1333 MHz, 1066 MHz
Speed PC3-12800, PC3-10666, PC3-8500
Technology DDR3
Max Size 16 GB
Supported RAM Integrity Check Non-ECC
Header:
Brand Intel
Product Line Intel Desktop Board
Model DX58SO
Edition Extreme Series
Packaged Quantity 1
Compatibility PC
Mainboard:
Form Factor ATX
Processor Socket LGA1366 Socket
Compatible Processors Core i7, Core i7 Extreme Edition
Chipset Type Intel X58 Express
I/O Controller Intel ICH10R
Supported RAM Technology DDR3 SDRAM
Supported RAM Speed 1066 MHz, 1333 MHz, 1600 MHz
Supported RAM Standard PC3-10666, PC3-12800, PC3-8500
Supported RAM Integrity Check non-ECC
RAM Slots 4 DIMM slots
Interface:
Storage Serial ATA-300 (RAID)
USB 3.0 / FireWire FireWire
Expansion Slots:
Total Qty 1, 2, 4
Type CPU, DIMM 240-pin, PCI, PCIe 2.0 x16, PCIe 2.0 x4, PCIe x1
