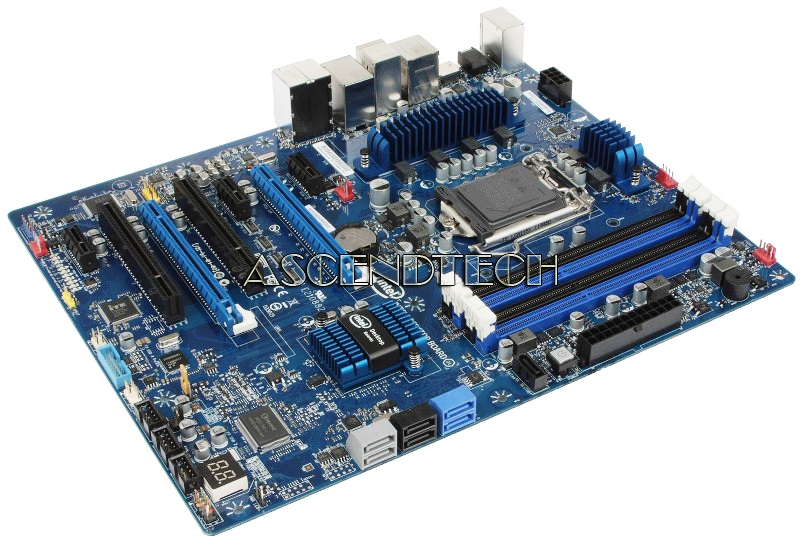

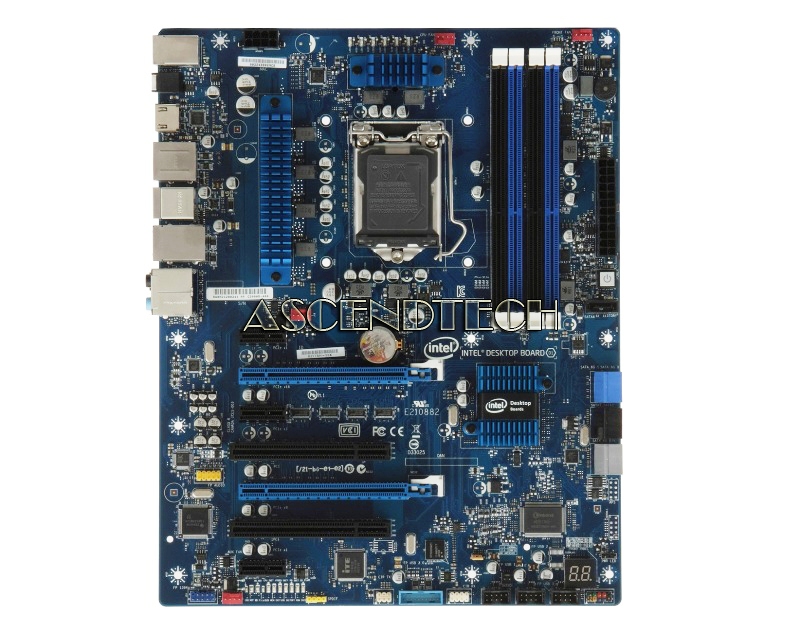

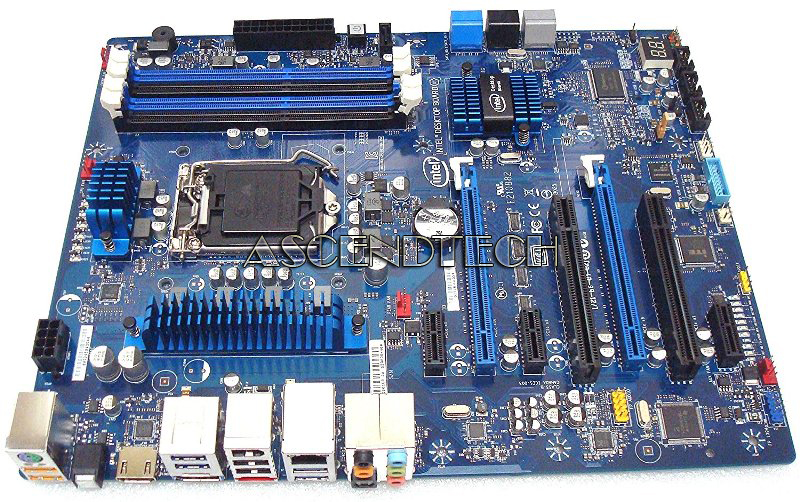

Intel DZ77BH-55K LGA1155 Z77 Motherboard

Intel DZ77BH-55K LGA1155 Intel Z77 HDMI, DP, SATA 6Gb/s USB 3.0 ATX Desktop Motherboard. The Intel DZ77BH-55K is a great foundation for your next PC build based on the state-of-the-art Intel 3rd generation Core processors. The Z77 chipset natively supports USB 3.0 technology bringing the USB peripherals data transfer to a new level at up to 5Gbps. Intel Smart Connect Technology keeps you always up to date with social networking even when system is asleep, while Intel Rapid Start Technology allows your PC to resume from deepest sleep in a flash.

Please Note, this Motherboard is new, but it comes in OEM Packaging and it does include the I/O Shield, SLI Bridge, SATA Cable, Driver CD and Manual.

Specifications:

Brand: Intel
Model: DZ77BH-55K
CPU Socket Type: LGA 1155
CPU Type: Core i7 / i5 / i3 (LGA1155)
Chipset: Intel Z77
Number of Memory Slots: 4×240pin
Memory Standard: DDR31600/1333/1066
Note: DDR3 1600 MHz DIMMs are only supported by 3rd generation Intel Core processor family processors
Maximum Memory Supported: 32GB
Channel Supported: Dual Channel
Expansion Slots:
2 x PCI Express 3.0 x16
3 x PCI Express x1
2 x PCI Slots
Storage Devices
3 x SATA 3Gb/s
4 x SATA 6Gb/s
Onboard Video Chipset: Supported only by CPU with integrated graphic
Onboard Audio Chipset: Realtek ALC892
Audio Channels: 10-channel (8 + 2)
Onboard LAN Chipset: Intel 82579V
Max LAN Speed: 10/100/1000Mbps
Rear Panel Ports
1 x PS/2
1 x HDMI
1 x DisplayPort
4 x USB 3.0
4 x USB 2.0 (2 hi-current/fast charging USB)
1 x IEEE 1394a
1 x eSATA 6Gb/s
1 x Optical
5 x Audio Ports
Internal I/O Connectors
2 x USB 3.0 + 6 x USB 2.0
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 24 Pin
Included:
- Intel DZ77BH-55K Motherboard
- I/O Shield
- SLI Bridge
- SATA Cable
- Driver CD and Manual

Please Note, this Motherboard is new, but it comes in OEM Packaging and it does include the I/O Shield, SLI Bridge, SATA Cable, Driver CD and Manual.
