Intel G965 Viiv LGA775 BTX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Intel G965 Viiv Lga775 Btx Motherboard. Model: G965 Btx Motherboard
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4INTG965BTX
Brand Intel
Model G965 BTX MOTHERBOARD
Category Intel Lga775 Motherboards

Description

Intel G965 Chipset Motherboard. This Motherboard Supports Intel Pentium 4, Pentium 4 HT, Pentium D, Celeron D, Core2 Extreme, and Core2 Duo processors. Please note this motherboard features Gateway Logo when booted, this board can be used in STANDARD BTX cases. This board is not designed for ATX cases, this is the new style BTX.

Features:

Intel G965 chipset
Supports Intel Pentium 4, Pentium 4 HT, Pentium D, Celeron D, Core 2 Extreme, and Core2 Duo processors
LGA775 socket
1066, 800, or 533 MHz system bus
Memory support for DDR2 800, 667, or 533 MHz DIMMs, expandable up to 8 GB
Integrated Intel Ekron-N (82562V) 10/100 Ethernet LAN
Integrated VGA and DVI with HDCP graphics
Integrated high definition audio using Sigmatel STAC9271 codec
Four add-in card slots:
Two PCI conventional
One ×16 PCI Express
One ×1 PCI Express

Packaging: OEM System Builder Bulk Packed. IO Shield not included.

Specifications:

Form FactoruBTX 10.4 × 10.5 inches
ChipsetIntel® G965 and ICH8-DH
Processor SupportSupport for the following Intel LGA775 socket processors with a 1066, 800, or 533 MHz system bus
  • Pentium® 4
  • Pentium 4 with Hyper-Threading Technology
  • Pentium D
  • Celeron® D
  • Core2 Extreme
  • Core2 Duo
Memory
  • Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • DDR2 800, 667, or 533 MHz DIMMs
  • Single and dual channel modes supported
  • Expandable up to 8 GB total memory
    • LAN SupportIntegrated Intel Ekron-N (82562V) 10/100 Ethernet LAN
    VideoIntegrated VGA and DVI with HDCP graphics
    AudioIntegrated high definition audio using Sigmatel STAC9271 codec
    Add-in Card Slots
  • One ×16 PCI Express
  • One ×1 PCI Express
  • Two PCI conventional
    • Rear panel ports
  • One PS/2 keyboard port
  • One PS/2 mouse port
  • Six USB 2.0 ports
  • One IEEE-1394a port
  • One VGA monitor port
  • One DVI with HDCP monitor port
  • One RJ-45 network port
    • Internal Interfaces
  • Two USB 2.0 connectors supporting 2 ports each
  • One front-panel IEEE-1394a connector
  • One serial port connector
  • One parallel port connector
  • Six serial ATA II interfaces
  • One parallel ATA IDE connector with UDMA 33, ATA-66/100 support
  • One floppy disk drive connector
  • Chassis intrusion connector
  • Front panel header (2 × 5)
  • BIOS configuration jumper
  • Front panel audio connector (2 × 5)
  • HD audio link connector
    • Additional Features
  • Advanced fan speed control integrated into chipset
  • Port Angeles 3.0/1.6 super I/O controller
  • Piezo speaker for BIOS POST codes
  • Stand-by power LED (green)
  • 4-Layer micro-BTX (uBTX) form factor
  • Board dimensions: 10.5 x 10.4
  • BIOS configuration jumper
  • Custom PIF/EFI BIOS
  • Intel quick resume technology
  • RoHS compliant
  • Intel Viiv 1.5 technology compliant

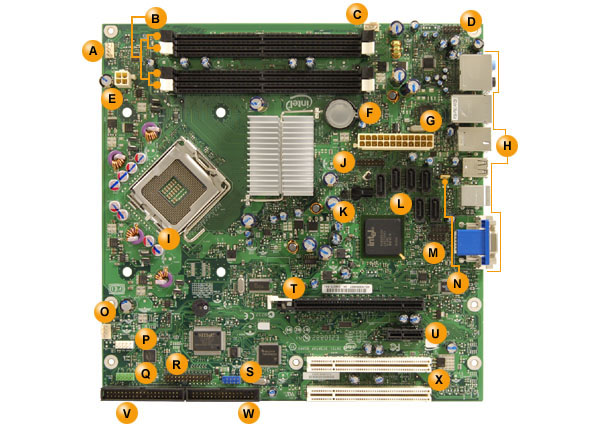

    • ACPU fan connectorMFront panel USB connectors
    BMemory slotsNBIOS configuration jumper
    CRear chassis fan connectorOFront chassis fan connector
    DFront panel audio connectorPFront panel connector
    EProcessor core power connectorQSerial port connector
    FBatteryRParallel port connector
    GATX main power connectorSFront panel IEEE-1394a connector
    HRear panel portsTPCI Express x16 connector
    IProcessor socketUPCI Express x1 connector
    JHD audio link connectorVParallel ATA IDE connector
    KIntrusion switch connectorWFloppy disk drive connector
    LSATA connectorsXPCI conventional connectors
