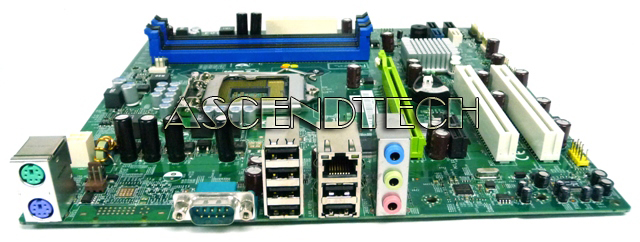

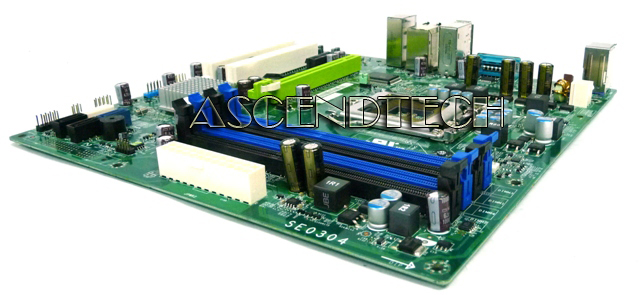

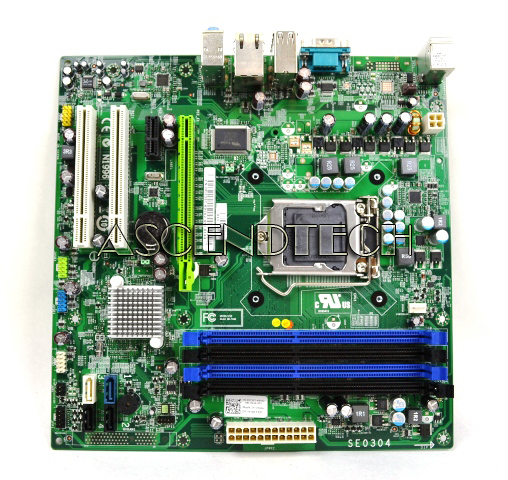

Intel H57 Express DDR3 SATA PCI-e x16 MB

Intel H57 Express Chipset Socket LGA1156 DDR3-1333 SATA PCI-Express x16 Core i3 i5 & i7 Motherboard By Dell. The Intel H57 Express Chipset continues to push innovation with a new architecture designed to deliver quality, performance, and industry-leading I/O technologies on platforms powered by the Intel Core i7 processor series, Intel Core i5 processors, and Intel Core i3 processors. The Intel H57 Express Chipset delivers new technologies and innovative capabilities for digital home, small office, and home office consumers. H57 meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Specifications:

Download Latest Drivers Here

Socket Type: Intel LGA1156

Supported Processors:
Intel Core i7 880, 875K 870S 870, 860S 860
Intel Core i5 760, 750 750S, 680 670 661 660 655K 650
Intel Core i3 560 550 540 530
Intel Pentium Dual Core G6960 G6950 G6951

Chipset: Intel H57 Express

Memory Type: DDR3 SDRAM at 1333Mhz

DIMM Slots: 4

Ram Capacity: Up to 16GB

External Ports:
2 x PS/2 Keyboard & Mouse
1 x Serial Port
6 x USB Port
1 x RJ-45 Network Port
1 x Audio Line-Out
1 x Audio Line-In
1 x Audio Microphone In

Internal Connectors:
2 x PCI
1 x PCIe x16
1 x PCIe x1
4 x SATA Ports

Audio:
Integrated

Video:
None
