INTEL LGA1156 H55 DDR3 SATA2 PCI-e X16

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Intel Lga1156 H55 Ddr3 Sata2 Pci-E X16. Model: Core I3 I5 I7 Motherboard

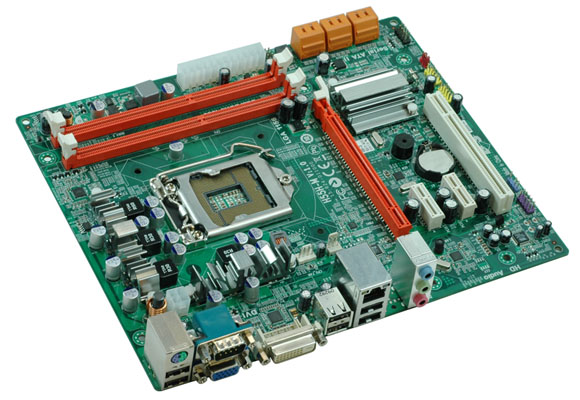

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBLGA1156UNIVKT
Brand Intel
Model core i3 i5 i7 motherboard
Category Intel Lga1156 Motherboards

Description

Socket 1156 PCI-Express DDR3 SATA2 Motherboard With Video Audio & Lan! For Intel Core i3 i5 & i7 Processors.

Specifications:

  • CPU: Socket 1156 Support Intel Core i3/ i5/ i7 processors, FSB Upto 2.5 GT/s
  • Chipset: Intel H55 Express Chipset
  • Memory: 2x 240pin DDR3-1333/1066 DIMMs, Dual Channel, Max Capacity upto 4GB
  • Slots: 1x PCI-Express x16 Slots; 2x PCI-Express x1 Slots; 1x PCI Slots
  • SATA: 6x SATA2 Ports
  • Audio: VIA VT1705 6-channel High Definition Audio CODEC
  • Video: Integrated Graphic Controller
  • LAN: Integrated Gigabit Ethernet
  • Ports: 10x USB 2.0 Ports(6 Rear, 4 by header); 1x PS/2 Ports; 1x VGA Port; 1x DVI Port; 1x Serial Port; 1x RJ45 LAN Port; Audio I/O Jacks
  • Power Connector: 1x 24pin Main Power connector, 1x 4pin CPU Power connector
  • Form Factor: Micro ATX, 24.4 x 20.0 cm







Detailed Specifications:

CPU º LGA1156 socket for latest Intel Core i7 / Core i5 / Core i3 high-end desktop processors
º DMI 2.5GT/s

CHIPSET º Intel® H55 Express Chipset

MEMORY º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 8 GB
º Support DDR3 1333/1066 SDRAM

EXPANSION SLOT º 1 x PCI Express x16 slot
º 2 x PCI Express x1 slots
º 1 x PCI slot

STORAGE º Support by Intel® H55
    • 6 x Serial ATA 3.0Gb/s devices

AUDIO º VIA® VT1705 6-channel audio CODEC

LAN º Atheros AR8131M Gigabit Fast Ethernet Controller
º Atheros AR8132M 10/100 Fast Ethernet Controller(Optional)

REAR PANEL I/O º 1 x PS/2 keyboard/mouse combo port
º 6 x USB ports
º 1 x VGA port
º 1 x DVI Port
º 1 x COM Port
º 1 x RJ45 LAN connector
º 1 x Audio port (3 holes jack)

INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
º 6 x Serial ATA 3Gb/s connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Buzzer
º 1 x Clear CMOS header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x Front panel header
º 1 x Chassis intrusion header
º CPUFAN/SYSFAN connectors

SYSTEM BIOS º AMI BIOS with 16Mb SPI Flash ROM
º Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
º Supports ACPI revision 3.0 specification
º CPU voltage adjustable
º Memory voltage adjustable

FORM FACTOR º Micro-ATX Size, 244mm*200mm


CPU Support List:

SocketFamilyProcessorFrequencyFSB/HTCacheStatusGraphics
LGA1156Intel Core i5™750s (B1) (82W)2.40 GHz2.5GT/s8MBYES
LGA1156Intel Core i5™750 (B1) (95W)2.66 GHz2.5GT/s8MBYES
LGA1156Intel Core i5™680(K0)(73W)3.60GHz2.5GT/s4MBYESYES
LGA 1156Intel Core i5™670 (K0) (73W)3.46GHz2.5GT/s4MBYESYES
LGA1156Intel Core i5™670 (C2) (73W)3.46 GHz2.5GT/s4MBYESYES
LGA 1156Intel Core i5™661 (K0) (87W)3.33GHz2.5GT/s4MBYESYES
LGA1156Intel Core i5™661 (C2) (87W)3.33 GHz2.5GT/s4MBYESYES
LGA 1156Intel Core i5™660 (K0) (73W)3.33GHz2.5GT/s4MBYESYES
LGA1156Intel Core i5™660 (C2) (73W)3.33 GHz2.5GT/s4MBYESYES
LGA1156Intel Core i5™655K(K0)(73W)3.20GHz2.5GT/s4MBYESYES
LGA 1156Intel Core i5™650 (K0) (73W)3.20GHz2.5GT/s4MBYESYES
LGA1156Intel Core i5™650 (C2) (73W)3.20 GHz2.5GT/s4MBYESYES
LGA1156Intel Core i7™880(B1)(95W)3.06GHz2.5GT/s8MBYES
LGA1156Intel Core i7™875K(B1)(95W)2.93GHz2.5GT/s8MBYES
LGA1156Intel Core i7™870 (B1) (95W)2.93 GHz2.5GT/s8MBYES
LGA1156Intel Core i7™860s (B1) (82W)2.53 GHz2.5GT/s8MBYES
LGA1156Intel Core i7™860 (B1) (95W)2.80 GHz2.5GT/s8MBYES
LGA1156Intel Core i3™560(K0)(73W)3.33 GHz2.5GT/s4MBYESYES
LGA1156Intel Core i3™550(K0)(73W)3.20GHz2.5GT/s4MBYESYES
LGA 1156Intel Core i3™540 (K0) (73W)3.06GHz2.5GT/s4MBYESYES
LGA1156Intel Core i3™540 (C2) (73W)3.06 GHz2.5GT/s4MBYESYES
LGA 1156Intel Core i3™530 (K0) (73W)2.93GHz2.5GT/s4MBYESYES
LGA1156Intel Core i3™530 (C2) (73W)2.93 GHz2.5GT/s4MBYESYES
LGA1156Intel PentiumG6950 (C2) (73W)2.80 GHz2.5GT/s3MBYESYES
