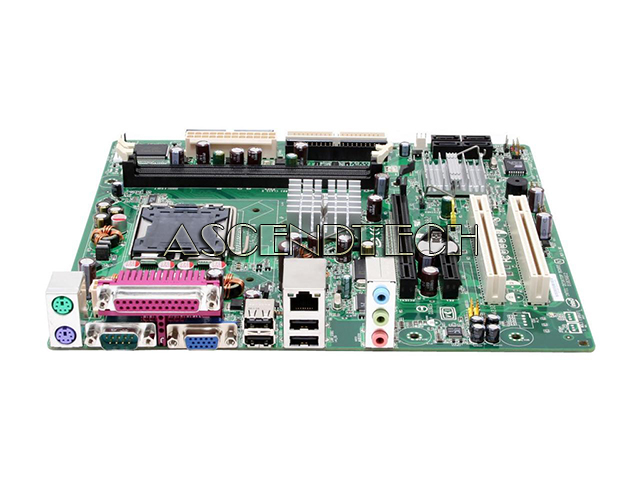

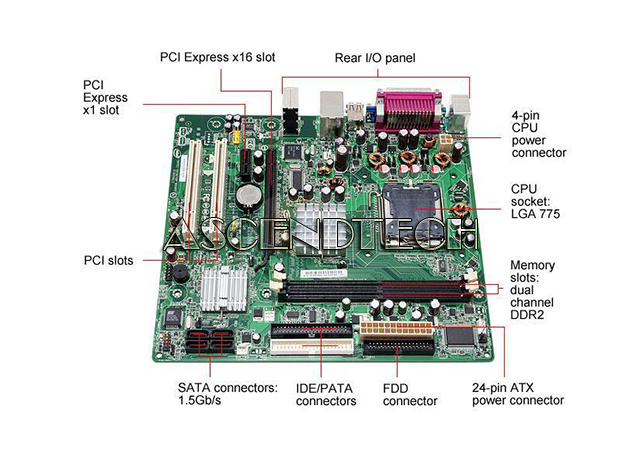

Intel LGA775 Motherboard D102GGC2

Intel D102GGC2 Socket LGA775 ATI Radeon Xpress 200 DDR2MicroATX Desktop Motherboard.











Specifications:

Form Factor MicroATX (243.84 millimeters [9.60 inches] x 218.44 millimeters [8.60 inches])
Processor Support for an Intel processor in the LGA775 package
Main Memory
• Two 240-pin SDRAM Dual Inline Memory Module (DIMM) sockets
• 533/400 MHz single channel DDR2 SDRAM interface
• Designed to support up to 2 GB of system memory
Chipset
ATI RADEON XPRESS 200
• ATI RADEON XPRESS Northbridge
• ATI IXP 450 Southbridge
Graphics ATI RADEON XPRESS 200 Graphics with support for external graphics via a PCI Express x16 connector
Audio
• ATI RADEON XPRESS 200 Chipset
• High Definition Audio interface
• Realtek codec
Expansion Capabilities
• Two PCI bus add-in card connectors
• One PCI Express x16 connector
• One PCI Express x1 connector
Peripheral Interfaces
• Eight USB 2.0 ports
 - Four ports routed to the back panel
 - Four ports routed to two USB headers
• Four Serial ATA (SATA) channels (1.5 Gb/s)
• Two IDE interfaces with ATA-100 support (four devices)
• One VGA connector
• One diskette drive interface
• One parallel port
• One serial port
• PS/2 keyboard and mouse ports
BIOS
• Intel BIOS
• Support for SMBIOS
• Intel Rapid BIOS Boot
• Intel Express BIOS Update
Power Management
• Support for Advanced Configuration and Power Interface (ACPI)
• Suspend to RAM (STR)
• Wake on USB, PCI, PCI Express, PS/2, LAN, and front panel
