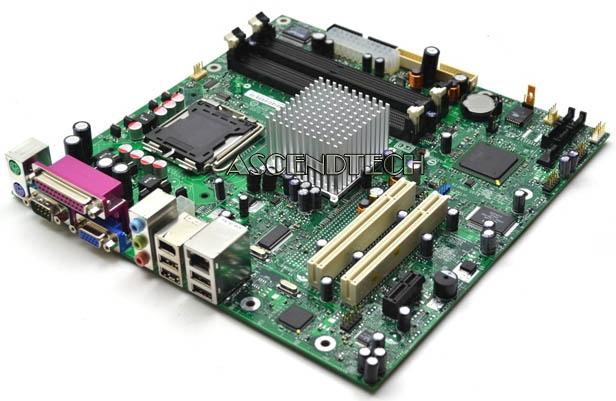

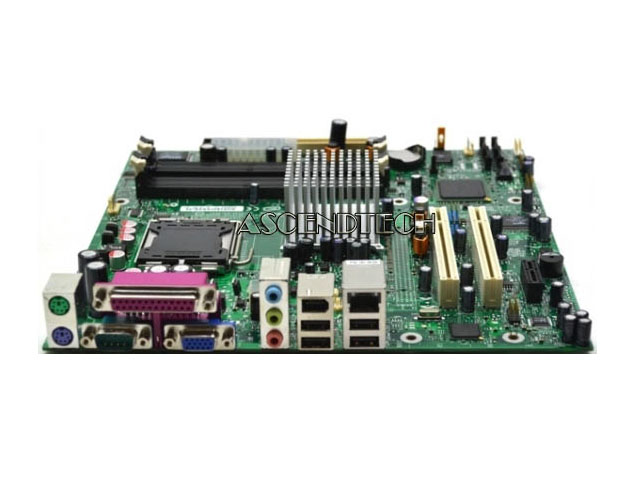

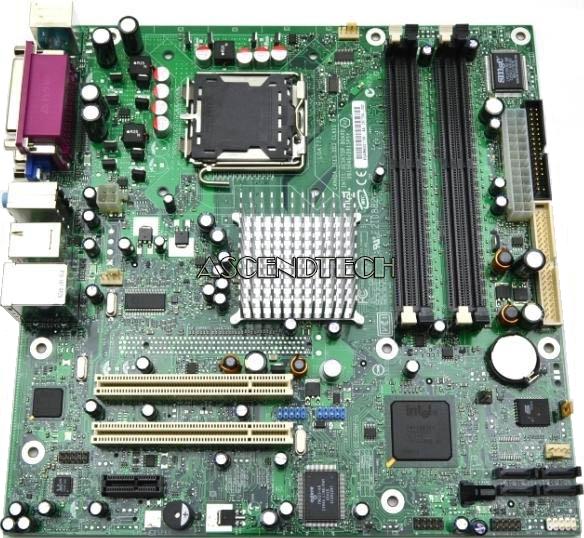

INTEL D915GAG D915PSY | Intel Lga775 Oem Motherboard No I/O

Intel Socket T LGA775 Intel 915G Chipset OEM Motherboard. This motherboard supports Intel Pentium 4 LGA775 processors, Intel Graphics Media Accelerator 900 DDR 400/333 MHz memory, and Intel High Definition Audio.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Specifications:

Intel Model Number	D915GAG/D915PSY
Processor	Support for an Intel Pentium 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Memory	Two DDR SDRAM Memory Module (DIMM) sockets Support for DDR 400 MHz and DDR 333 MHz DIMMs Support for up to 4 GB of system memory
Chipset	Intel 915G Chipset, consisting of: Intel 82915G Graphics Memory Controller Hub (GMCH) Intel 82801FB I/O Controller Hub (ICH6) 4-Mbit Firmware Hub (FWH)
Video	Intel GMA900 onboard graphics subsystem
Audio	Intel High Definition Audio subsystem using the Realtek ALC860 audio codec
I/O Control	Support for USB 2.0 devices
Peripheral Interfaces	Four back USB ports One serial port One Firewire port One parallel port Four Serial ATA interfaces One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support One diskette drive interface PS/2 keyboard and mouse ports
LAN Support	10/100 Mbits/sec LAN subsystem using the Intel® 82562EZ Platform LAN Connect (PLC) device
BIOS	Intel/AMI BIOS (resident in the 4 Mbit FWH) Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Hardware Monitor Subsystem	Hardware monitoring and fan control ASIC Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan connectors Three fan sense inputs used to monitor fan activity Fan speed control
Form Factor	microATX Form Factor (9.60 × 9.60 inches [243.84 × 243.84 millimeters]

INTEL LGA775 OEM MOTHERBOARD NO I/O
