Intel Raid Controller Card RES3TV360
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code RDCNTCINTRES3TN
Brand Intel
Part Number RES3TV360
Compatible Part Numbers TCA-00363-01-C H19563-005 2283600-R AEC-83600/INTEL SINGLE
Category Sata & Sas Raid Controller Cards
Condition New Open Box
Condition Description Please note, this item comes with short cables to connect to 24-ports on Nearby Drive Backplane!
Description

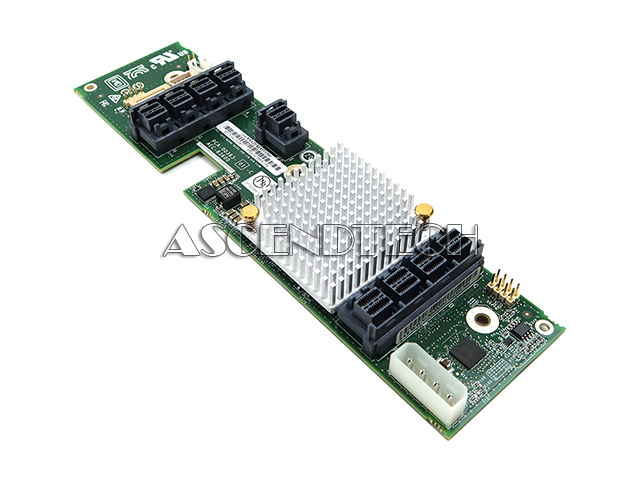

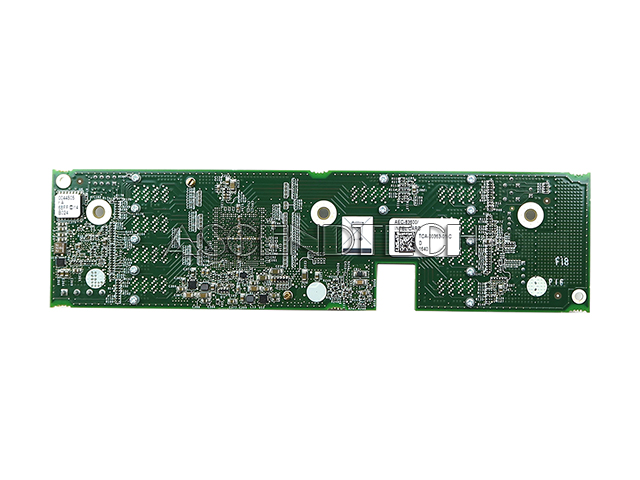

Intel 36-Port SAS/SATA 12GB/s RAID Storage Expander Controller Card RES3TV360.
Data Transfer Rate: 12GB/s
Storage Interface: SAS/SATA
Firmware: 8MB in an updateable flash ROM
Connectors: 4-pin Power connector
Expansion Slots: 9x HD SFF8643 mini-SAS
Form Factor: Low Profile
Type: Raid Controller Card

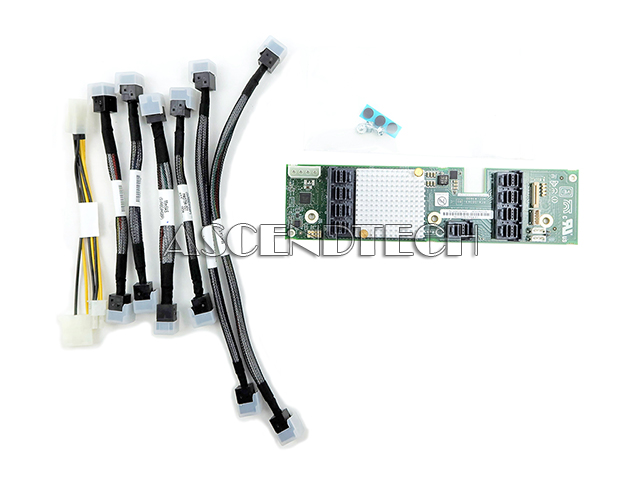

Features: Optional Cable Kit P/N: AXXCBLEXPHDMS (Include: 4x mini-SAS (SVRBD/HSBP) Cable P/N: H40794-001; 1x mini-SAS (SVRBD/HSBP) Cable P/N: H22348-001; 1x mini-SAS (SVRBD/HSBP) Cable P/N: H40776-001; 1x Bizlink 2U SAS EXP Power Cable P/N: H23935-001; Hardware Set)
