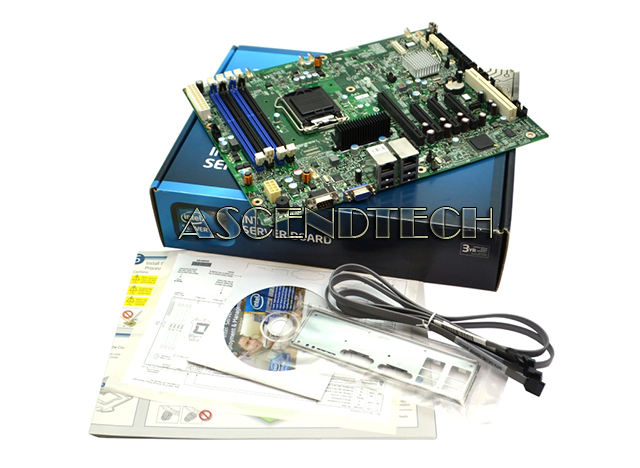

Intel S1200BTL MB DA0S09MB6C0 Retail Box

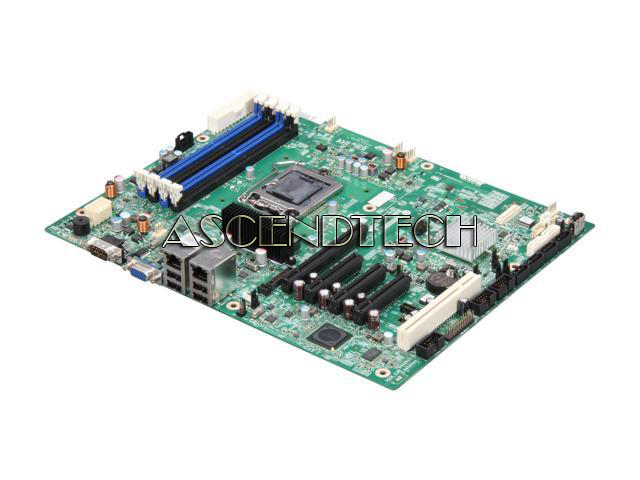

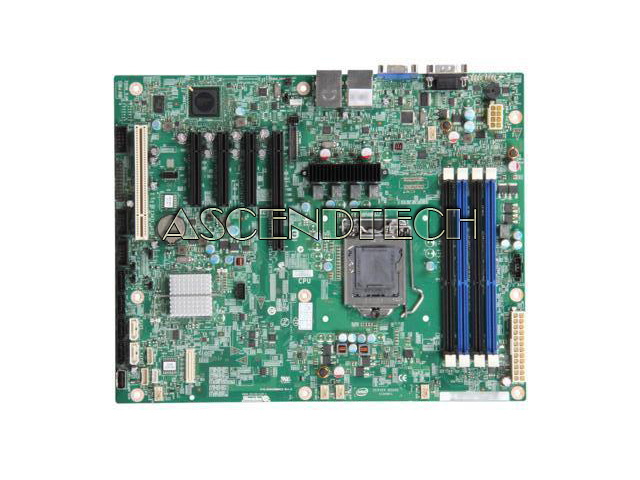

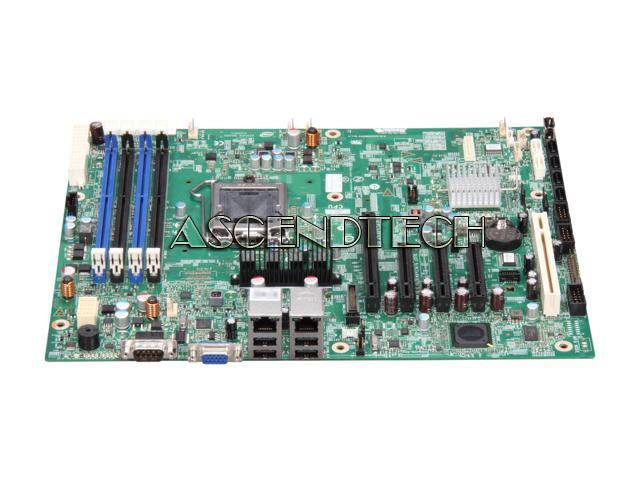

Intel S1200BTL Socket LGA1155 C204 DDR3 1066/1333 DIMM ATX Server Motherboard DA0S09MB6C0. The Intel Server Board S1200BTL provides server-class performance without sacrificing cost-effectiveness or reliability to support the success of a workgroup, department, or small- to medium- sized business. The S1200BTL supports the Intel Xeon processor E3 1200 series and will support the next generation processor once available ensuring future upgradeability.











Specifications:

Model

Brand Intel
Model S1200BTL
Part Number DA0S09MB6C0
Compatible Part Numbers S1200BTLR

Supported CPU

CPU Socket Type LGA1155
CPU Type Intel Xeon E3-1200 Series

Chipsets

North Bridge Intel C204

Memory

Number of DDR3 Slots 4 x 240pin
DDR3 Standard DDR3 1066/1333 DIMM

Expansion Slots

PCI-Express x8 1 x PCI Express 2.0 x8 slot (x16 mechanical)
PCI-Express x4 3 x PCI Express 2.0 x4 slot (x8 mechanical)
PCI Slots 1 x PCI Slot

Storage Devices

SATA 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID 0/1/5/10

Onboard LAN

LAN Chipset Intel 82574L
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82578DM
Second LAN Speed 10/100/1000Mbps
Max LAN Speed Dual 10/100/1000Mbps

Features

Integrated graphics:
Server Engine LLC Pilot II Controller with 64 MB DDR2 memory, 8MB allocated to graphics
Management and security:
Integrated IPMI 2.0 baseboard management controller
Intel System Management Software
Intel Deployment Assistant

Dimensions

Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
