Intel S1200SPLR Server Mboard No I/O
Qty:
Item Code MBSERIS1200SPLD
Brand Intel
Model S1200SPLR
Part Number DA0S6EMB6B0
Series/Family S1200SP Family
Compatible Part Numbers 31S6EMB0090 H57532-210 H57532-250 H57532-260 H57532-271 H57532-272 H57532-350
Category Intel Lga1151 Motherboard
Condition Pre-Owned Grade D

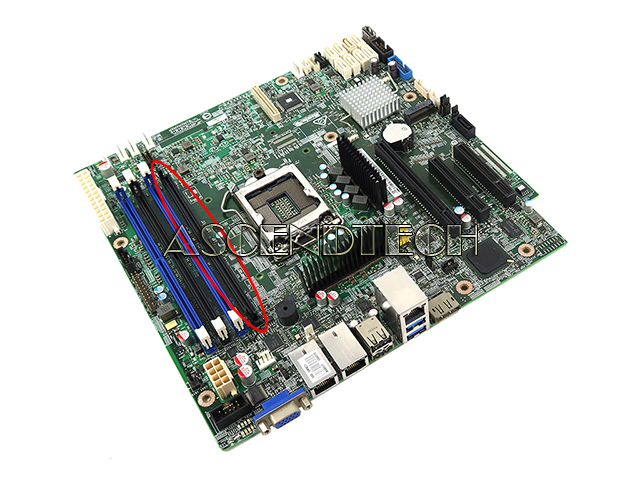

Condition Description Please note, this item is used and has minor scuffs and scratches, as well as broken memory slot! Item is fully operational and functions as intended! This motherboard does not include an I/O Shield, fan’s mounting backplate, fan’s bracket, cables, or any other accessories! No cables, or any other accessories! Please see the images!
Description

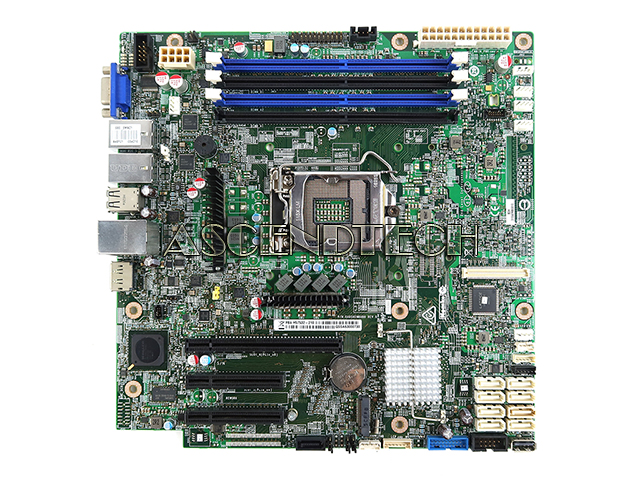

Intel S1200SPLR Chipset C236 Socket-H4 LGA1151 DDR4 SDRAM Micro-ATX Server Motherboard DA0S6EMB6B0.
Chipset: Intel C236
Socket: Socket-H4 LGA1151
Compatible/Supported CPU: Single Intel Xeon Processor E3-1200 v6 or v5, up to 80W
Max Supported Memory: Up to 64GB
Number of Memory Slots: 4 (2-Channel)
Memory Type: DDR4 SDRAM
Network/Communications: Integrated LAN 2x 1GbE (i210)
Connectors: 1x USB 2.0 Type A; 1x 2x12 SSI; 8x SATA3 6Gb/s; 1x SATADOOM (SATA 4); 1x TPM 1.2 or TPM 2.0 Module, 2x7 pin; 1x 2x4 pin connector for Intel RMM4 key; 1x DH-10 Serial; 2x USB 2.0/3.0; 2x USB 2.0
Input/Output Ports: 2x USB 2.0; 2x USB 3.0; 1x Dual 1GBase-T (RJ-45); 1x Single 1GBase-T (RJ-45); 1x Display Port; 1x VGA (DB-15)
Expansion Slots: 1x PCI-E Gen3 x8 w/ x16; 1x PCI-E Gen3 x4 w/ x8; 1x PCI-E Gen3 x8 w/ x8; 1x Proprietary slot for a x4 Intel Integrated RAID Module; 1x M.2 SATA SSD connector, 22x42mm
Form Factor: Micro-ATX 9.6" x 9.6"
Type: Server Motherboard
