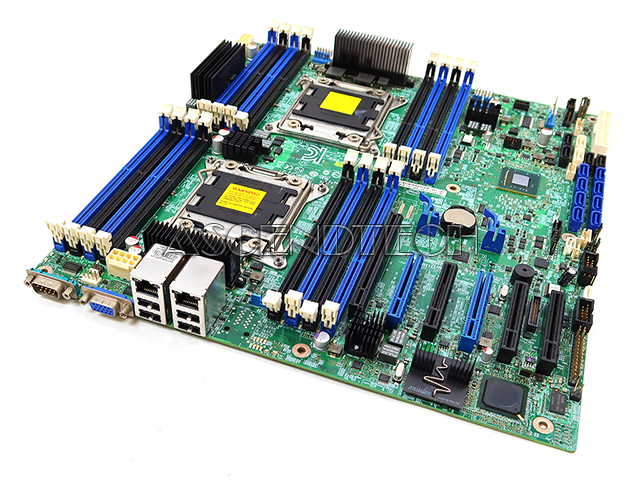

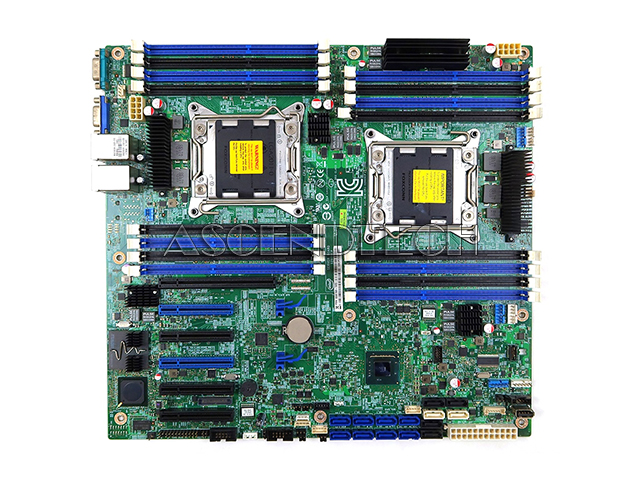

Intel S2600CP C602 Server Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBSERINTS2600CP
Brand Intel
Model S2600CP
Category Intel Lga2011 Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover or any other accessories.
Description
Intel S2600CP Chipset C602 Socket LGA2011 DDR3 SDRAM SSI EEB Server Motherboard.
Chipset: Intel C602 with support for Intel C600 RAID Upgrade Keys
Socket: Socket LGA2011
Compatible/Supported CPU: Dual Intel Xeon E5-2600 and E5-2600 v2 Processor
Max Supported Memory: Up to 512GB
Number of Memory Slots: 16 (8-Channel)
Memory Type: DDR3 SDRAM
Speed: 800/1066/1333/1600/1866 MHz/s
Video Chipset/GPU Model: Integrated Matrox G200 2D Video Graphics controller
Network/Communications: 2x Intel Gigabit network through Intel I350 10/100/1000 integrated MAC and PHY controller
Connectors: 2x SATA3 6.0 Gb/s; 4x SATA2 3.0 Gb/s; 1x 2x5 pin connector providing front panel support for two USB ports; 1x Type-A USB 2.0 port; 1x USB port to support low profile eUSB SSD; 1x DH-10 serial Port B connector; 1x combined header consists of a 24-pin SSI-EEB compliant front panel header and a 4-pin header for optional NIC3/4 LED; 1x 1x7pin header for optional Intel Local Control Panel support
Input/Output Ports: 4x USB 2.0; 2x RJ-45; 1x VGA (DB-15); 1x Serial (DB-9)
Expansion Slots: 1x PCI-E Gen3 x4/x8 w/ x8; 4x PCI-E Gen3 x8 w/ x8; 1x PCI-E Gen3 x8 w/ x16
Form Factor: SSI EEB
Type: Server Motherboard
