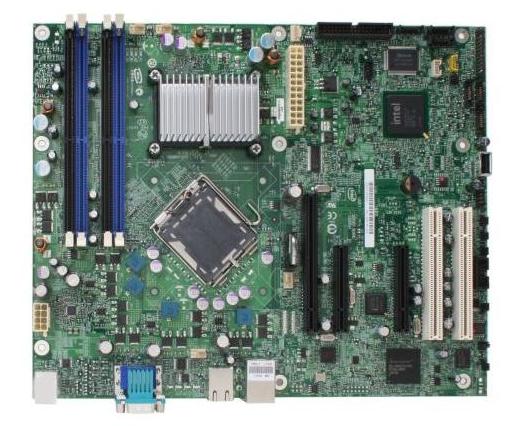

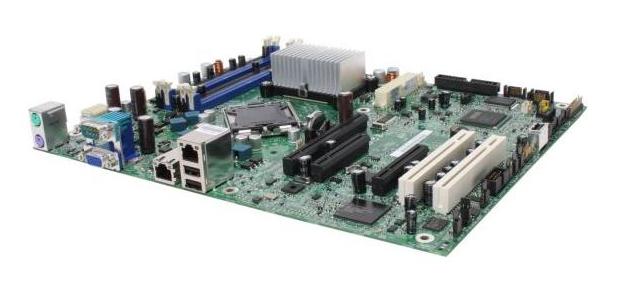

INTEL S3210SHLC LGA 775 SERVER MB

Intel S3210SHLC, LGA775 Intel Xeon/Core 2 server motherboard with essential server-class features. Growing businesses need a trusted server solution for database, file, or messaging applications. A general-purpose entry server platform plays a fundamental role in the success of a workgroup, department, or small- to medium-sized business. The Intel® Entry Server Board S3200SH is ideal for customers who need server-class performance but don't want to sacrifice effectiveness or reliability.

Product specifications:

Processor Support:
Intel® Core™ 2 Quad desktop processors
Intel® Core™ 2 Duo desktop processors
Intel® Xeon® processor 3000 sequence

System Bus Speed:
800/1066/1333 MHz

Chipset:
Intel 3210 Server Chipset

PCI Buses:
5

Total Expansion Slots:
5

Expansion Slot types:
One PCI Express x8 with x16 connector
One PCI Express x8 with x8 connector
One PCI Express x 4 with x8 connector
Two PCI 32-bit/33 MHz

Memory:
Dual memory channel, four DIMM slots for DDR2
667/800 MHz
Unbuffered ECC/non-ECC DIMMs (8 GB max)

Integrated Serial ATA:
Six SATA ports at 3.0 Gb/s

Integrated LAN:
Two Intel Gigabit Ethernet connections

Integrated Graphics:
Yes

Server Management Support :
Intel® System Management Software 2.0

Intel® RAID Support:
RAID 0,1,5,10
