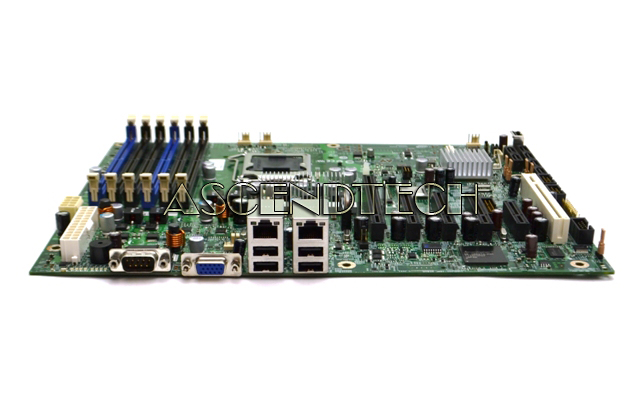

Intel S3420GPLX Motherboard E51974-407
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBS3420GPLXASSY
Brand Intel
Model S3420GPLX
Part Number E51974-407
Series/Family S3420GP
Category Intel Lga1156 Motherboards
Condition New Open Box

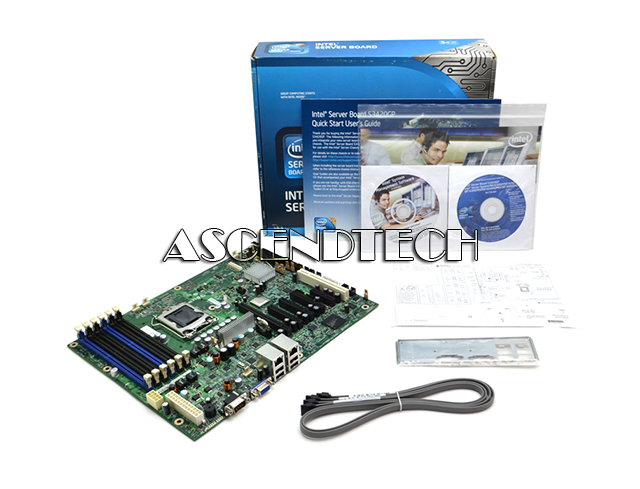

Condition Description Please note, this motherboard comes with rear I/O shield also known as back-plate cover, 2x SATA Cables, Manual, and 2x CDs!
Description
Intel S3420GPLX Chipset 3420 Socket LGA1156 DDR3 USB SAS SATA ATX Server Motherboard E51974-407.
Chipset: Intel 3420
Socket: LGA1156
Compatible/Supported CPU: Intel Xeon 3400, Core i3-500, Pentium G650 Series
Max Supported Memory: 32GB with x8 ECC RDIMM; 16GB with x8 ECC UDIMM
Number of Memory Slots: 6 DIMM
Memory Type: DDR3 SDRAM
Speed: 1066/1333MHz
RAID Support: SAS: 0, 1, 10; SATA: 0, 1, 5, 10; Embedded SATA: 0, 1, 10; SAS/SATA: 0, 1, 5, 6, 10, 50, 60.
Video Chipset/GPU Model: Integrated 2D Video Controller
Graphics Memory: 64 MB DDR2 667 MHz
Network/Communications: One Gigabit Ethernet device 82574L connect to PCI-E x1 interfaceson the PCH.One Gigabit Ethernet PHY 82578DM connected to PCH throughPCI-E x1 interface.
Connectors: 6x SATA, 1x SAS Module connector, 2x USB headers, 1x serial port header, 4x system fan headers, 1x CPU fan header, 1x Main power connector, 1x CPU power connector, 1x IPMB, 1x Front panel connector, 1x USB SSD connector, Intel RMM3 Connector
Input/Output Ports: 4x USB 2.0, 2x RJ-45, 1x VGA, 1x serial port, 1x vertical on-board USB floppy
Expansion Slots: 1x PCI-E 1 x4, 1x PCI-E 1 x8, 2x PCI-E 2 x8, 1x PCI-E 2 x16, 1x PCI
Form Factor: ATX
Type: Serverboard
