Intel S5500HCV Motherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBIS5500HCVNOIO
Brand Intel
Model S5500HCV
Category Intel Lga1366 Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover, or any other accessories! Motherboard only!
Description

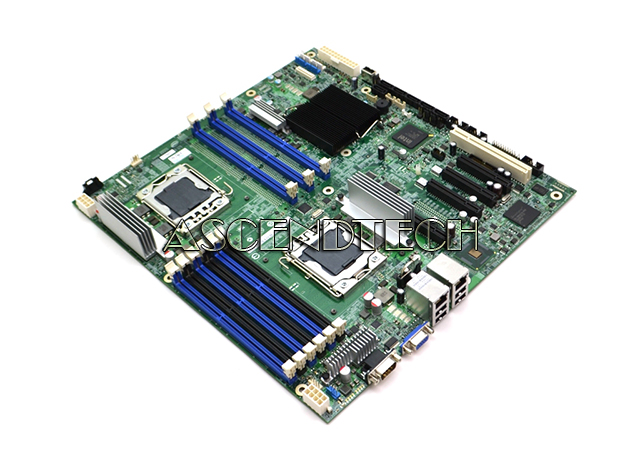

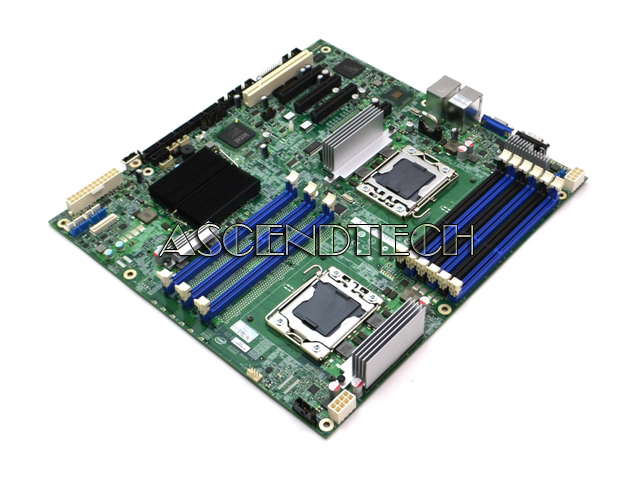

Intel S5500HCV Chipset 5500 Socket Dual LGA1366 DDR3 USB 2.0 SATA SSI EEB Server Motherboard.
Chipset: Intel 5500 Chipset
Socket: 2x LGA1366
Compatible/Supported CPU: Intel Xeon 5500 5600 Series
Number of Memory Slots: 9 DIMM
Memory Type: DDR3
Speed: 800/1066/1333 MT/s
RAID Support: 0, 1, 5, 10
Network/Communications: Two Gigabit through Intel 82575EB PHYs with Intel I/O Acceleration Technology 2 support
Connectors: 1x main power connector, 2x 9-pin USB headers (each supports two USB 2.0 ports), 1x DH10 serial port B header, 6x SATA connectors at 1.5 Gbps and 3 Gbps, 1x One SSI-compliant 24-pin front control panel header, 2x CPU fan 4-pin headers, 4x front system fan 6-pin headers, 1x rear system fan 4-pin header, 1x LCP/IPMB header, 1x Chassis Intrusion Header, 1x HDD Activity LED Header, 1x Front Control Panel header, 2x CPU Power Connectors, SAS Modue Slot, 1x Auxiliary Power Signal Connector

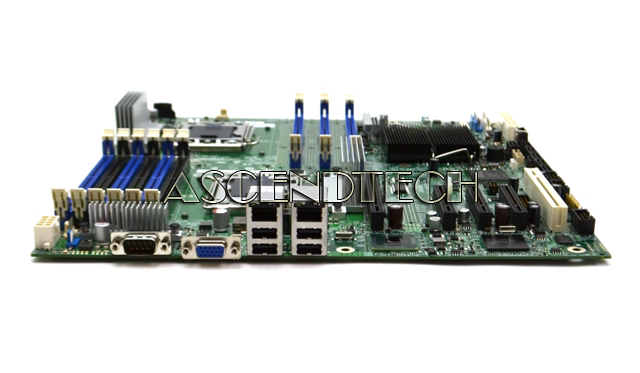

Input/Output Ports: 1x DB-9 serial, 1x VGA, 2x RJ-45, 1x Type A USB Port, 4x USB 2.0
Expansion Slots: 1x PCI-Express Gen2 slot (x16 Mechanically, x4 Electrically), 2x PCI-Express Gen2 x8, 1x PCI-Express Gen1 (x8 Mechanically, x4 Electrically), 1x PCI
Form Factor: SSI EEB
Type: Server Motherboard
