Intel Server Motherboard DA0S50MB8D1
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBSEDA0S50MB8D1
Brand Intel
Model S5520HCR
Part Number DA0S50MB8D1
Series/Family S5500HC Family
Category Intel Lga1366 Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover or any other accessories.
Description

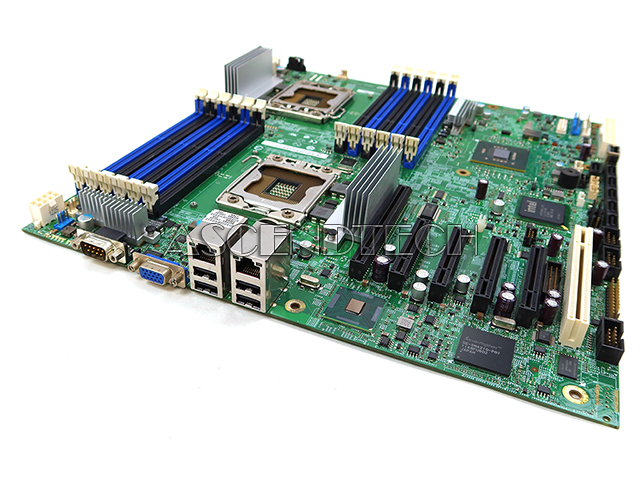

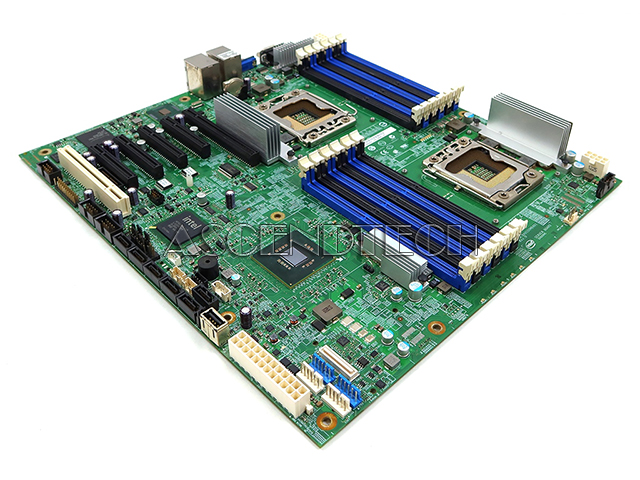

Intel S5520HCR Chipset 5520/ICH10R Socket Dual LGA1366 DDR3 SDRAM SSI EEB Server Motherboard DA0S50MB8D1.
Chipset: Intel 5520/ICH10R
Socket: Dual LGA1366
Compatible/Supported CPU: Dual Intel Xeon 5500/5600 Series
Max Supported Memory: Up to 192GB
Number of Memory Slots: 12 (6-Channel)
Memory Type: DDR3 SDRAM
Speed: 1333 MHz
Error Correction (ECC): yes
Video Chipset/GPU Model: Server Engine Matrox G200e
Graphics Memory: 64MB DDR2 SDRAM
Maximum Resolution: 1024x768
Network/Communications: Intel Ethernet Controller 82575EB, 2x Gigabit Ethernet 10/100/1000Mbps
Connectors: 6x SATA 3.0 Gb/s; 4x SAS 3.0 Gb/s; 1x SSI-compliant 24-pin front control panel heade; 2x 9-pin USB headers, each supports two USB 2.0 ports; 1x Internal USB port; 1x DH10 serial port B header;
Input/Output Ports: 4x USB 2.0; 2x RJ-45; 1x VGA (DB-15); 1x Serial (DB-9)
Expansion Slots: 1x PCI-E 2.0 x8 w/ x16; 3x PCI-E 2.0 x8; 1x PCI-E 2.0 x4 w/ x8; 1x PCI
Form Factor: SSI EEB
Type: Server Motherboard
