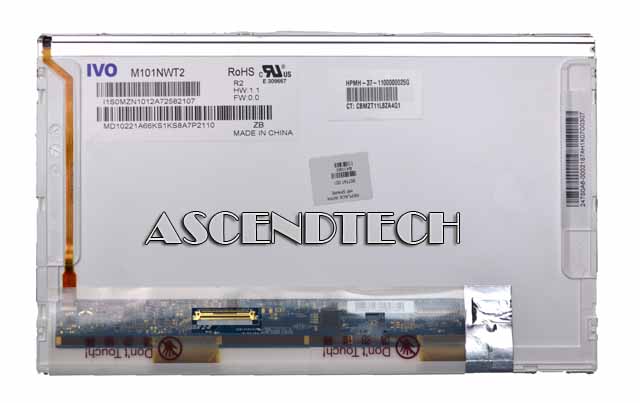

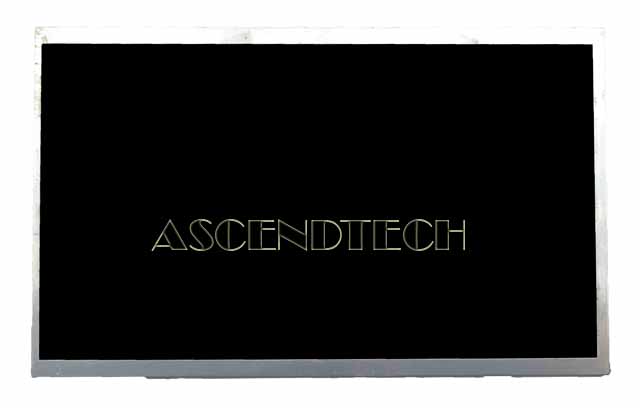

IVO 10.1" TFT HD LED LCD Screen Display

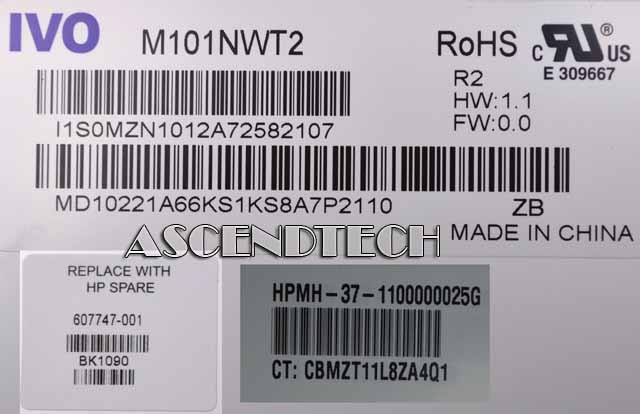

The IVO M101NWT2 R2 is a color active matrix thin film transistor (TFT) TN liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 10.1-inch diagonally measured active display area with WSVGA resolution (1,024vertical by 600 horizontal pixel array).


Features:

■ 10.1” TFT LCD Panel
■ LED Light-bar Backlight System
■ Supported WSVGA (V:1024 lines, H:600 pixels) Resolution
■ Compatible with RoHS Standard
■ Dual Gate (2 Source + 2 Gate)


Specifications:

Screen Diagonal: 10.1"
Active Area: 222.72(H) x 125.28(V)
Pixels: H x V 1,024 (x3) x 600
Pixel Pitch: 0.2175(H)x0.2088(V)
Pixel Arrangement: R.G.B. Vertical Stripe
White Luminance: 200 (Typ.) 5 points average cd/ m2 (20mA of per LED)
Contrast Ratio: 500 (Typ.)
Response: Time 8 ms （Typ.）
View Angle: (L/R/U/D) 45/45/15/35(Typ.)
Input Voltage:  +3.3 (Typ.) V
Power Consumption: 2.8 (Max) Watt
Module Weight: 190(Max.) g
Outline Dimension: （MAX） 235.5 x 143.5 x5.2 mm

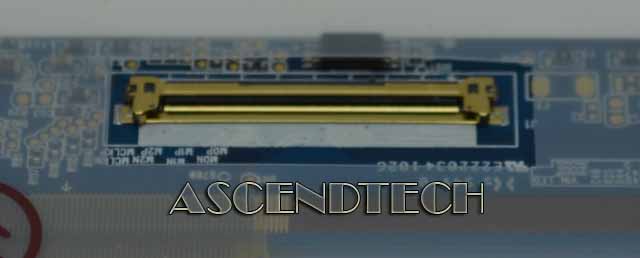

Electrical Interface: (Logic) LVDS
Support Color: 262 K
Color Gamut: 45%(Typ.)
Optimum Viewing Direction: 6 o’clock
Surface Treatment:  Anti-Glare + HC
