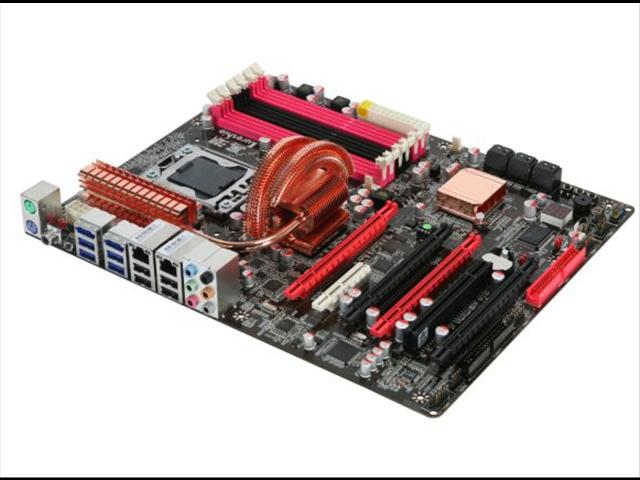

JetWay JBI-600-LF LGA1366 Intel X58 DDR3

JetWay JBI-600-LF Core i7 Socket LGA 1366 Intel X58 Chipset DDR3 Motherboard With Dual LAN & 4 PCI Express Slots For Best Gaming Performance!

* Limit - 1 Per Customer Please!

Specifications:

Model:
Brand JetWay
Model JBI-600-LF
Supported CPU:
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
FSB QPI 6.4GT/S
Chipsets:
North Bridge Intel X58
South Bridge Intel ICH10R
Memory:
Number of Memory Slots 6×240pin
Memory Standard DDR3 1600/1333
Maximum Memory Supported 24GB
Channel Supported Dual / Triple Channel
Expansion Slots:
PCI Express 2.0 x16 4 x PCI-Express x16 slot by 8-lane slots
PCI Express x4 1
PCI Slots 1
Storage Devices:
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6
SATA RAID 0/1/5/10
Onboard Audio:
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN:
LAN Chipset Realtek RT8111CVC
Second LAN Chipset Realtek RT8111CVC
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports:
PS/2 2
USB 1.1/2.0 8 x USB 2.0
eSATA 2 x eSATA 3Gb/s
Audio Ports 6 Ports
Onboard USB:
Onboard USB 2 x USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports
Physical Spec:
Form Factor ATX
Power Pin 24 Pin
