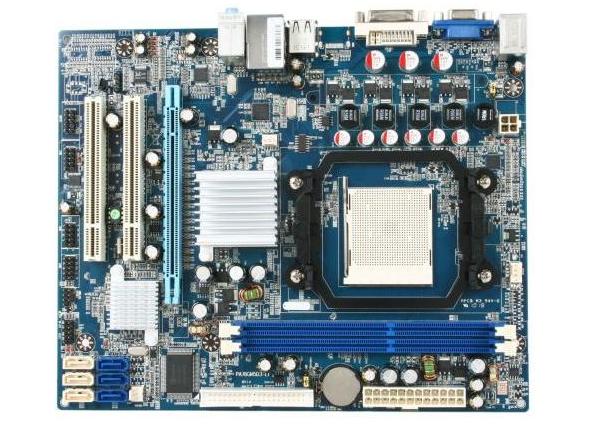

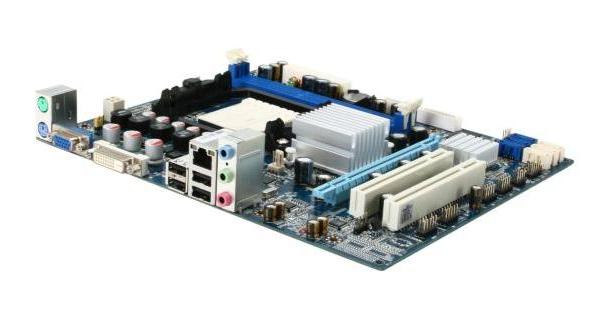

JETWAY JPA76GM5D3-LF AMD AM3 MOTHERBOARD

JetWay JPA76GM5D3-LF AM3 AMD 760G Micro ATX AMD Motherboard. Systems based on the AMD 760G chipset are packed with the latest technologies you need for your home office or small business – DirectX10 for a Windows Vista Premium experience and expandable to accommodate additional storage for your files. Help increase your productivity with ATI SurroundView and display documents on more than one monitor with the addition of an ATI Radeon graphics card. The AMD 760G chipset also provides an energy efficient platform to help consume less power and help lower your energy bills. Paired with an AMD Athlon X2 Dual-Core processor, this system provides a competitive, stable and affordable solution.


Specifications:

CPU: Supports AMD Socket AM3 Series processors
Chipset: AMD 760G Chipset + AMD SB710 Chipset
Integrated Graphics Processor: ATI Radeon HD 3000(For Microsoft DX 10)
Hyper Transport Bus: HT 3.0 2600 MHz
Memory:
2 x 240-pin DDR3 DIMM slots
Supports Dual-Channel DDR2 1333/1066 non-ECC ,un-buffered memory
Maximum - 8GB
Expansion Slots:
2 x 32-bit PCI Slots
1 x PCI Express x16 slot @16-LANE
Storage:
AMD SB710 Southbridge Chipset
6 x Serial ATA2 3Gb/s connectors
Supports HDDs with RAID 0,1,10,JBOD functions
1 x Ultra DMA 133 / 100 / 66 IDE connector
Audio:
Realtek ALC662 6-Channel HD Audio CODEC
Ethernet:
LAN Realtek RTL8103EL PCI-E 10/100m LAN
USB:
Embedded 8 x USB 2.0/1.1
Special Features:
Advanced Power Design that supports the latest Socket-AM3 K10 CPU
Support Windows 7

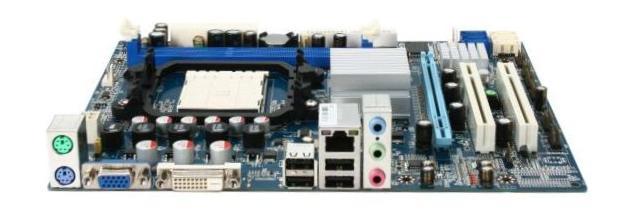

Rear Panel I/O:
4 x USB 2.0/1.1 ports
1 x PS2 KB/MS port
1 x VGA port
1 x DVI port
1 x RJ-45 port
3 x Audio I/O port(Line-in, mic and line-out)
Internal I/O:
2 x USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports
1 x COM Port
1 x ATX 24-pin Power Connector
BIOS:
8MB DIP Flash ROM
Form Factor:
Micro ATX Form Factor(245x200mm)
