Juniper Control Board + Routing Engine

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

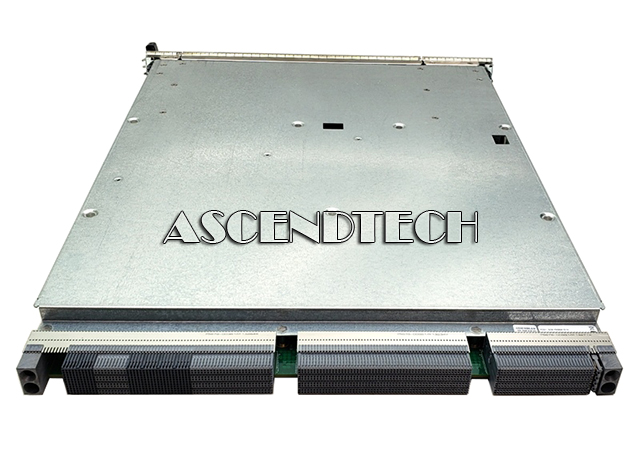

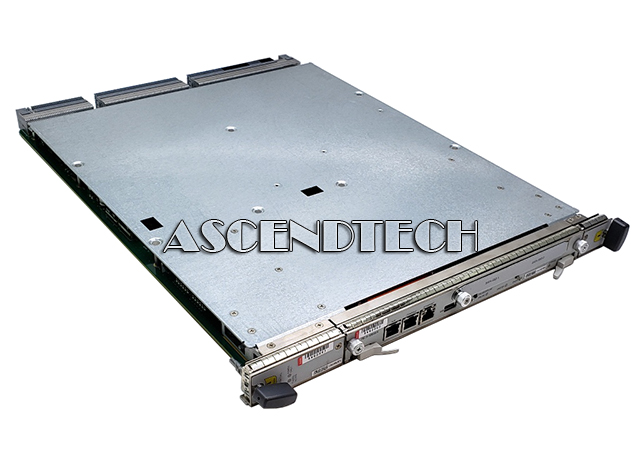

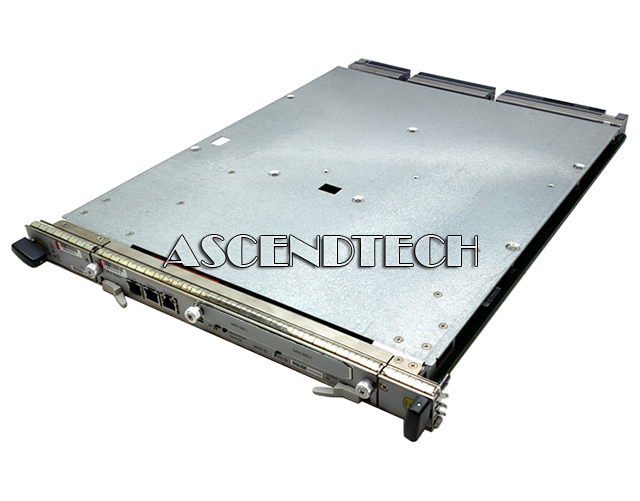

Juniper Control Board + Routing Engine. Model: Scb-Mx960-S-N 750-021524
  Enlarge
Juniper Control Board + Routing Engine. Model: Scb-Mx960-S-N 750-021524
Juniper Control Board + Routing Engine. Model: Scb-Mx960-S-N 750-021524
Juniper Control Board + Routing Engine. Model: Scb-Mx960-S-N 750-021524
Juniper Control Board + Routing Engine. Model: Scb-Mx960-S-N 750-021524
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code NETJ51002144602
Brand Juniper
Model SCB-MX960-S-N 750-021524
Category Network Ethernet / Lan Cards
Condition Like New Grade A
Condition Description Please Note, this item is used and may have minor scuffs and scratches, but is fully operational and functions as intended. Comes with Routing Engine, 4x 4GB Swissbit Memory Cards! No Cables, Manuals, or any other accessories!

Description

Juniper Networks MX240 MX480 MX960 Series Router Switch Control Board With Routing Engine SCB-MX960-S 750-021524 REV 21.

Model Number: SCB-MX960-S
Juniper Part Number: 750-021524 REV 21
PID Number: SCB-MX960-S-N
Routing Engine Part Number: 740-031116
Routing Engine Model Number: RE-S-1800X4-16G-S-D
Compatible Part Numbers: 510-021446-02
Compatible Models: Juniper MX240 MX480 MX960 Routers
Includes: Routing Engine, 4x 4GB Swissbit Memory Cards







Features:

- Each SCB-MX provides two switch fabric planes for packet forwarding among the DPCs and MPCs in the MX960.
- The MX960 chassis may contain up to three SCB-MX's Therefore, six fabric planes are available.
- The MX960 provides 2 + 1 SCB-MX redundancy when used with DPC line cards.
- In redundant fabric mode, four fabric planes from the first two SCB-MX’s will be in Active mode, and two fabric planes from the third SCB-MX will be in Spare mode.
- In a non-redundant fabric mode, all six fabric planes will be in Active mode to increase fabric bandwidth.
- SCB-MXs installed in slots 0 and 1 provide non-redundant fabric connections. An SCB-MX installed in slot 2/6, in conjunction with SCB-MXs in slots 0 and 1, provides redundant fabrics, but the Routing Engine installed on it receives no power and provides no additional routing functions. If no SCB-MX is installed in slot 2/6, you must install a blank panel in the slot.
