KLIPSCH PROMEDIA 4.1 BLACK 5-PIECE SPEAK

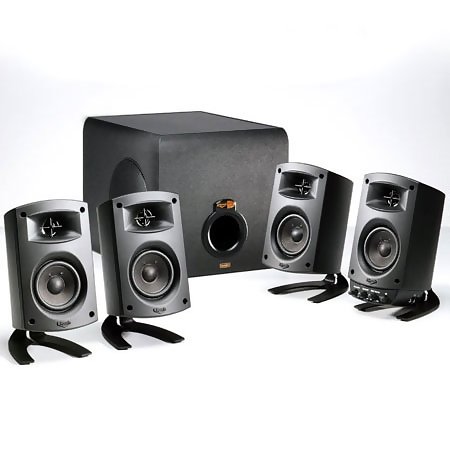

The ProMedia 4.1 personal audio system is a five-piece, THX-Certified, high output set of speakers based on our ground-breaking ProMedia v.2-400 surround sound design. The new ProMedia 4.1 maximizes audio signals from PC and Macintosh computers; MP3, CD, Minidisc and DVD players; video game consoles; and even digital video cameras, VCRs and televisions; providing a fun, involving listening experience.

The two-way ProMedia 4.1 satellite speakers are driven by exclusive Klipsch MicroTractrix Horns that cleanly and accurately handle the high frequencies, creating a precise nearfield image and soundstage. A three-inch fiber-composite cone driver delivers smooth mid-bass reproduction. A preamplifier control pod, which features separate main volume surround volume, and subwoofer level controls, a headphone jack and the miniplug input, is located on one of the satellite units.

The subwoofer is a bass-reflex type with a flared, tuned front port and dual 6.5" side-firing drivers, which features a high output, five-channel, BASH digital hybrid amplifier. BASH (Bridged Amplifier/Switching Hybrid) amplifiers are powerful, conventional amplifiers with digital switching-type power supplies, which are efficient, high-output, low distortion designs that deliver superior sound quality over conventional Class-D amps.

Features Include:
THX-Certified to deliver breathtaking audio performance;
High output amplifier drives four satellites and a vented dual 6.5" subwoofer;
29-20,000Hz frequency range;
110dB maximum output capability;
Satellites feature 0.75" MicroTractrix tweeters and 3" midbass drivers
in an elliptically shaped, acoustically damped, sealed enclosure for musical,
dynamic response;
Connects easily to four-channel soundcards, or any stereo mini-plug
equipped device.

New and Improved:
Headphone jack for private listening;
MP3 input for easy connection of personal audio players;
Speaker on/off switch with two-color status indicator;
Improved sonic performance through updated satellite crossover networks;
Improved amplifier performance for better channel separation,
lower crosstalk, and further optimized compression circuitry.

TECHNICAL SPECIFICATION

Frequency Response:
29Hz - 20kHz

 Maximum Acoustic Output:
110dB SPL

Enclosure Type:
Satellites:  Sealed;
Subwoofer:  Bass reflex.

Amplifier:
BASH Digital linear hybrid amplifier;
Discrete MOSFET output power section

Amplifier Power:
FTC Rated per Satellite: 80 watts/channel @ ≤ 1% THD, 100Hz - 1KHz
(Note: all channels driven);
FTC Rated Subwoofer: 70 watts @ ≤ 1% THD, 25 - 50Hz;
Maximum Burst Power: 400 watts @ ≤ 1% THD (Note: all channels driven)

Inputs:
Four-channel soundcard;
Twin miniplugs;
MP3 two-channel soundcard miniplug.

Outputs:
Headphone.

Drive Components:
Satellite: Two-way system using 0.75" (1.9cm) polymer dome tweeter
with a MicroTractrix Horn and one 3" long-throw midBass driver;
Subwoofer: Two Side-firing 6.5" (16.51cm) long-throw drivers.

Tweeter:
0.75" Poly compression driver.

High Frequency Horn:
90° x 40° MicroTractrix Horn.

High Frequency Crossover:
5kHz

Woofer:
3" Fiber-composite cone.

Subwoofer:
Two 6.5" (16.51cm) fiber composite cones.

Dimensions (H x W x D):
Satellite: 8.5" x 4.2" x 5.67" (21.6cm x 10.67cm x 14.4cm);
Subwoofer: 9.25" x 10.25" x 13" (23.5cm x 26cm x 33cm)

Weight:
Satellite: 2.1 lbs. (0.95kg);
Subwoofer: 17.5 lbs. (7.95kg)

Enclosure Material:
Satellites: ABS;
Subwoofer: Medium density fiberboard construction (MDF)

Finishes:
Black

Accessories:
RB-1 Stand, WB-1 Bracket (each sold separately)

Voltage:
110/120 VAC

Export Voltage:
230 VAC
