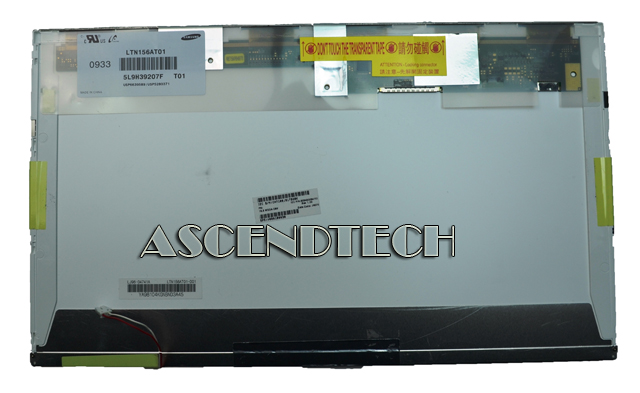

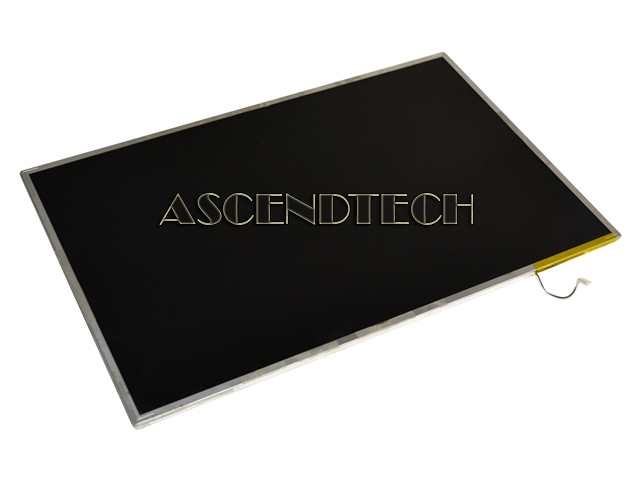

Laptop LCD CCFL Screen 15.6" LTN156AT01

Samsung LTN156AT01-D is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.6" contains 1366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum viewing angle.

Manufacturer: Samsung

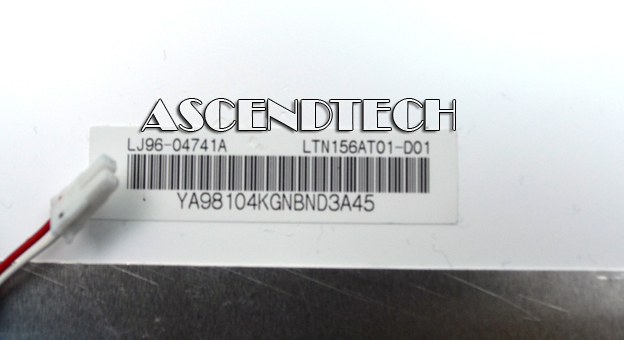

Model: LTN156AT01-D LTN156AT01-D01 LTN156AT01

Features:

• Thin and light weight
• High contrast ratio, high aperture structure
• 1366 x 768 pixels resolution (16:9)
• Fast Response Time
• Low power consumption
• DE (Data enable) only mode
• 3.3V LVDS Interface
• On board EDID chip
• Pb-free product
• RoHS compliance

Specifications:

Display area: 344.232 (H) x 193.536 (V) (15.6”diagonal)
Driver element: a-Si TFT active matrix
Display colors: 262,144
Number of pixel: 1366 x 768 16:9
Pixel arrangement: RGB vertical stripe
Pixel pitch: 0.252 (H) x 0.252 (V) (TYP.)
Display Mode: Normally white
Surface treatment: Haze 0, Hardness 3H Glare
