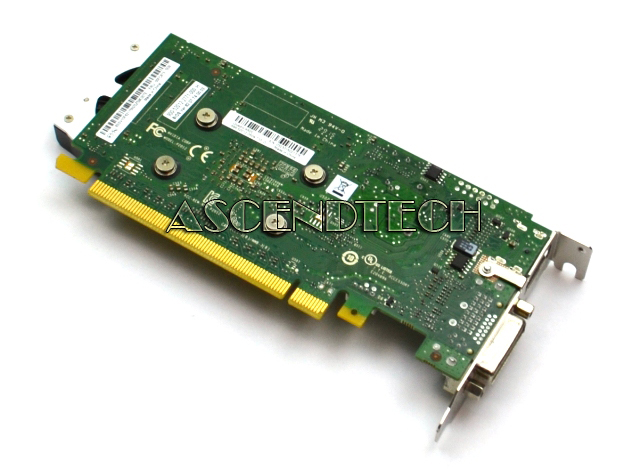

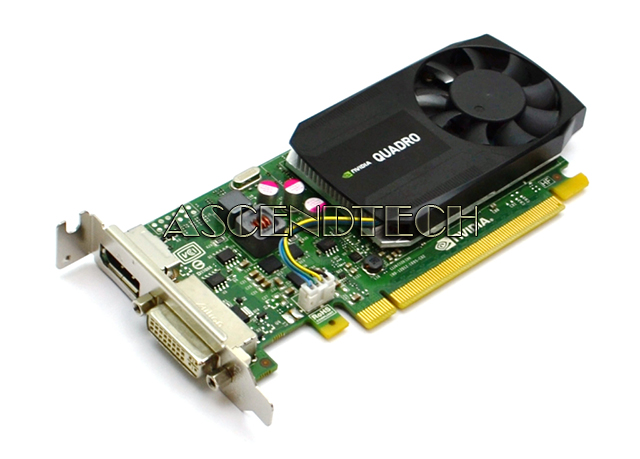

Lenovo Quadro K620 2GB Low Profile VC

NVidia Quadro K620 2GB DDR3 128-Bit DVI DisplayPort PCI-Express 2.0x16 ThinkStation WorkStation Low Profile Graphics Video Card 00FC813.

NVidia Model Number: Quadro K620
Lenovo Part Number: 00FC813
Compatible Part Numbers: 8SSV10F62115 180-12012-1005-C02 699-52012-05014-710 900-52012-2771-000











Specifications:

Performance

GPU Quadro K620
Stream Processors (CUDA Cores) 384
Memory 2GB
Memory Type DDR3
Memory Interface 128-bit
Memory Bandwidth 29 GB/s

Connectivity

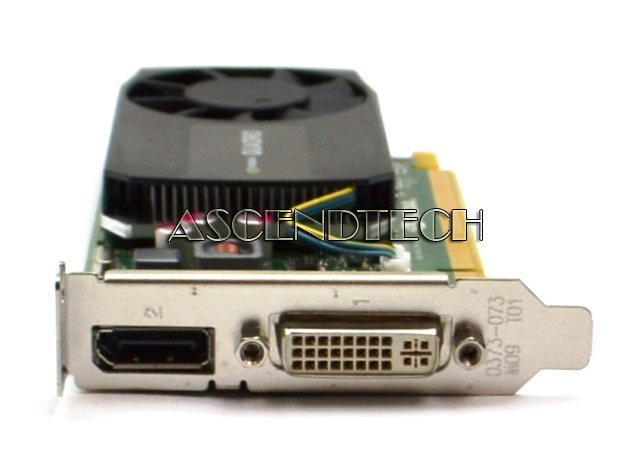

Outputs
1 x DisplayPort (DP 1.2 support)
1 x DVI-I dual-link
Maximum Resolution
DisplayPort: 3840 x 2160 (UHD 4K) at 60 Hz
DVI Dual-Link: 2560 x 1600 at 60 Hz
DVI Single-Link: 1920 x 1200 at 60 Hz
VGA (with Supplied Adapter): 2048 x 1536 at 85 Hz
Number of Displays Supported
Up to 4 using through DisplayPort (requires separately available MST hub)
HDCP Support Yes
Host Interface PCIe 2.0 x16

System Requirements

Software
Windows: 8.1, 8, 7, Vista, XP SP3
Linux
Solaris

Hardware
1 x Free PCIe expansion slot
1 GB RAM (2 GB or more recommended)
200 MB free disk space for drive installation
DVD-ROM to install drivers from disc
Internet connection to install drivers as download
Display with DisplayPort, DVI, or VGA input

General

Supported APIs
Graphics APIs: Shader Model 5.0, OpenGL 4.4, DirectX 11
Compute APIs: CUDA, DirectCompute, OpenCL

NVIEW Support
Nvidia Mosaic: Supported on Windows 8.1, 8, 7, and select Linux distributions
Nvidia 3D Vision and 3D Vision Pro: Via USB connection to 3D Vision hub
Thermal Solution Active fansink
Power Consumption Maximum: 45 W
Form Factor Single Slot: Low-profile
Dimensions 2.7 x 6.3" / 6.9 x 16 cm
