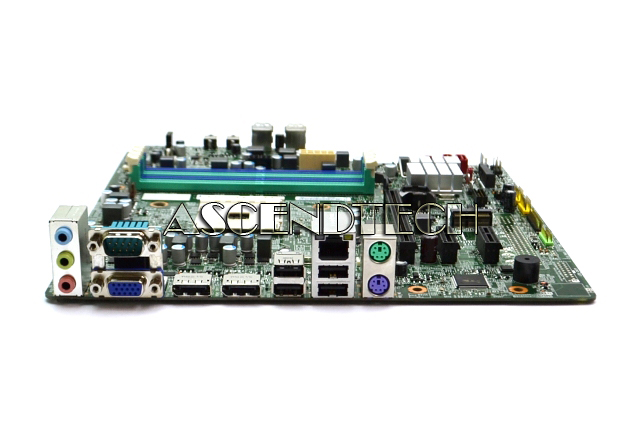

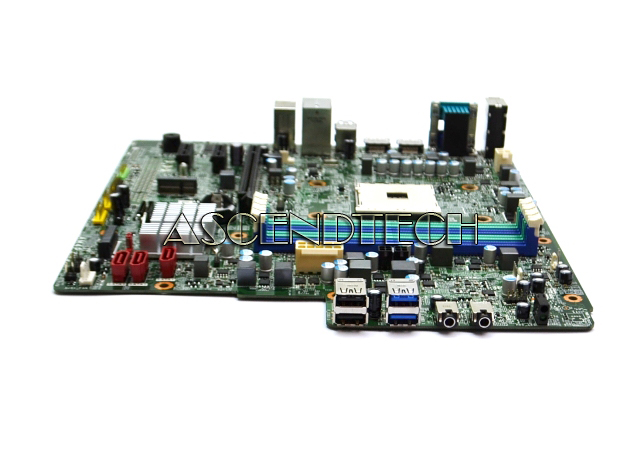

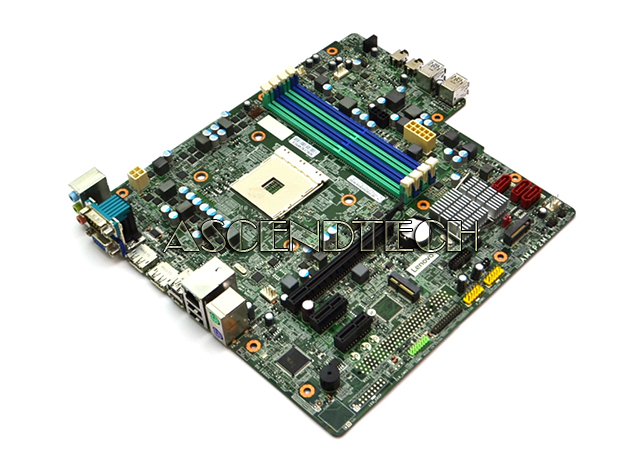

Lenovo ThinkCentre M725s AM4 Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBLENSB20L28288
Brand Lenovo
Model AM4P2MS
Part Number SB20L28288 8SSB20L28288
Compatible Part Numbers 5B20U53978 8S5B20U53978 5B20U53977 8S5B20U53977 01LM573 11S01LM573 01LM572 11S01LM572
Compatible Models Lenovo ThinkCentre M725s (10VT, 10VU) Series
Category Amd Socket Am4 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover, or any other accessories! Motherboard only!
Description
Lenovo ThinkCentre M725s 10VT 10VU Series AMD Socket AM4 DDR4 Proprietary Desktop Motherboard AM4P2MS SB20L28288 8SSB20L28288.
Max Supported Memory: 64GB
Number of Memory Slots: 4x DIMM
Memory Type: DDR4 SDRAM
Connectors: 3x SATA, 2x M.2, 1x 10-Pin Power, 1x 4-Pin Power Connectors
Input/Output Ports: 1x Serial, 1x VGA, 2x DisplayPorts, 1x RJ-45, 2x USB 2.0, 2x PS/2, 4x USB 3.0, 1x IR, 5x Audio
Expansion Slots: 1x PCI-E x16, 2x PCIe x1
Form Factor: Proprietary
Type: Desktop Motherboard
