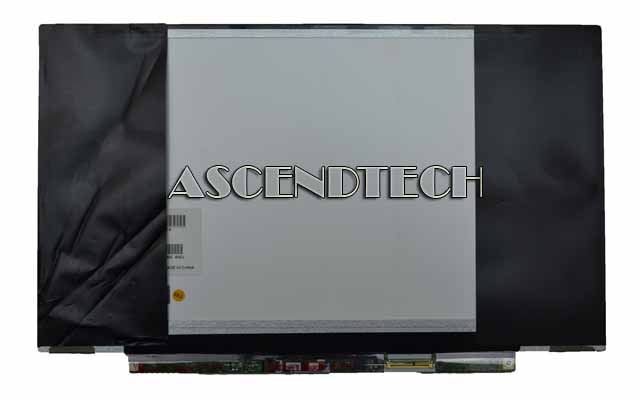

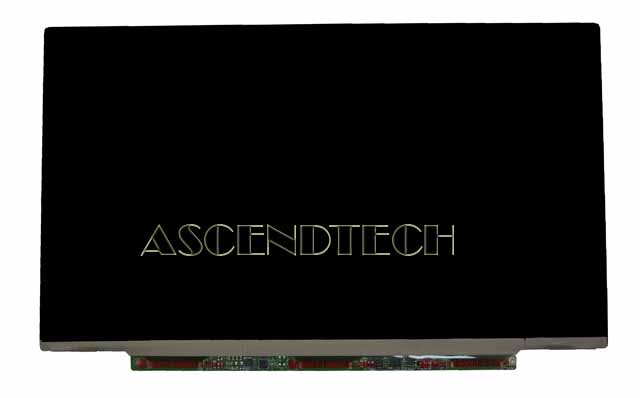

LG Display 13.3" TFT LED LCD HD Display

LG Display LP133WH2-TLL4 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with HD resolution (768 vertical by 1366 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP133WH2-TLL4 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP133WH2-TLL4 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP133WH2-TLL4 characteristics provide an excellent flat display for office automation products such as Notebook PC.

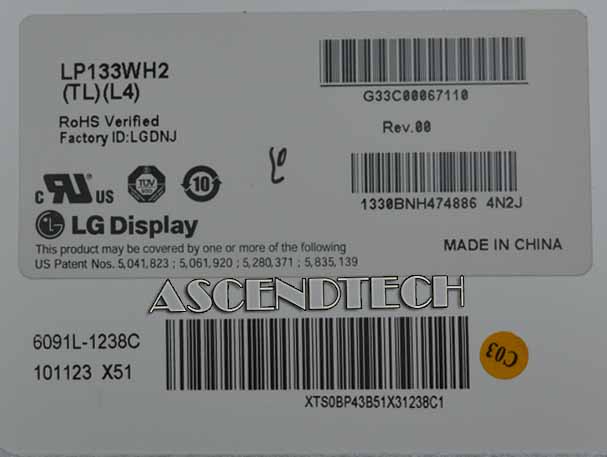

LG Display part Number: LP133WH2-TLL4


Specifications:

Display area: 293.42(H, typ.) × 164.97 (V, typ.) (13.3 inches diagonal )
Driver element: TFT active matrix
Number of pixel: 1366 x 768pixel
Pixel Format: RGB  vertical stripes
Pixel pitch: 0.2148(H) x 0.2148 (V) (TYP.) mm
Surface treatment: Glare treatment of the front polarizer (3H
Display colors: 262,144 6 Bit
Backlight: LED
Rohs Comply: yes
