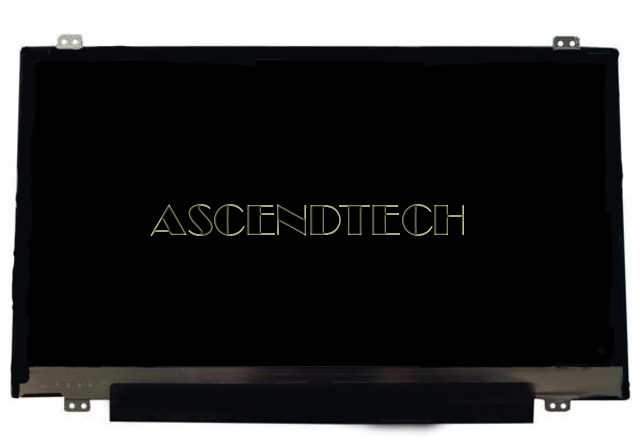

LG Display 14.0" HD TFT LED LCD Panel

The LG display LP140WH2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.6 inches diagonally measured active display area with HD resolution(768 vertical by 1366 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.  Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP140WH2 has been designed to apply the interface method that enables low power, high speed, low EMI.
The LP140WH2 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP140WH2 characteristics provide an excellent flat display for office automation products such as Notebook PC.


Specifications:

Active Screen Size: 14.0 inches diagonal
Outline Dimension: 320.4(H, typ) ϧ 198.6(V, typ) Ý 3.6(D,max) [mm] (with PCB Board)
Pixel Pitch: 0.2265mm Ý 0.2265 mm
Pixel Format: 1366 horiz. By 768 vert. Pixels RGB strip arrangement
Color Depth: 6-bit, 262,144 colors
Luminance, White: 200 cd/m2 (Typ.5 point)
Power Consumption: Total 3.14 Watt(Typ.) @ LCM circuit 0.84 Watt (Typ._Mosaic), B/L 2.30Watt(Typ.)
Weight: 320g (Max.)
Display Operating Mode: Transmissive mode, normally white
Surface Treatment: Hard Coating(3H), Glare treatment of the front polarizer
RoHS Comply: Yes






>
