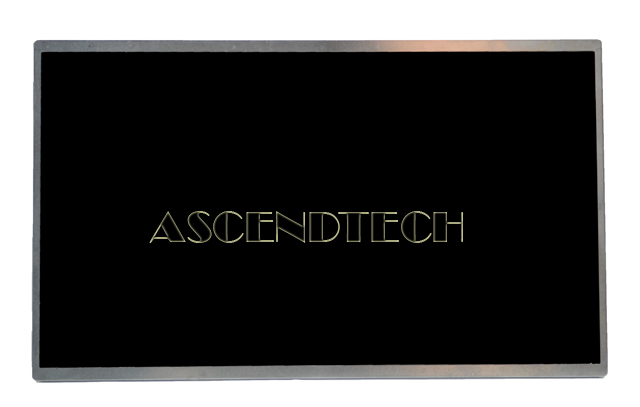

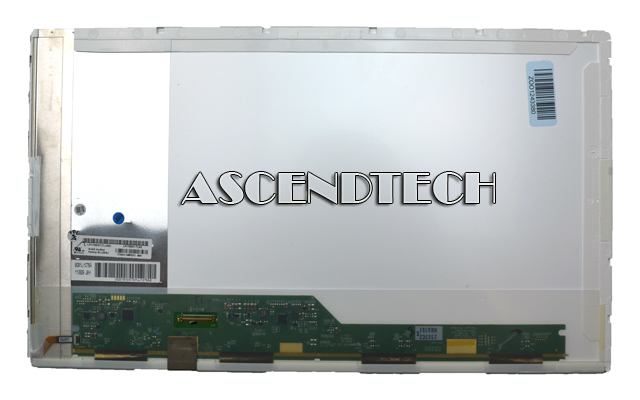

LG Display 17.3" LED LCD Screen Panel

LG Display LP173WD1-TLN2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 17.3 inches diagonally measured active display area with HD resolution (900 vertical by 1600 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP173WD1-TLN2 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP173WD1-TLN2 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP173WD1-TLN2 characteristics provide an excellent flat display for office automation products such as Notebook PC.

** Please Note, This item was removed from a working unit, it may have minor scuffs and scratches, but is fully operational and functions as intended!

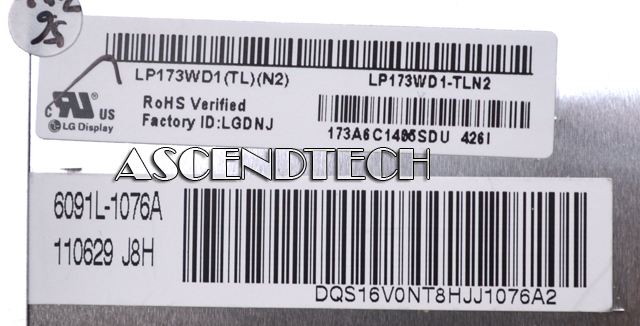

LG Display part Number: LP173WD1-TLN2


Specifications:

Display area: (17.3”diagonal)
Driver element: a-Si TFT active matrix
Number of pixel: 1600 x 900 pixel
Pixel Format: RGB strip arrangement
Pixel pitch: 0.2265 (H) x 0.2265 (V) (TYP.) mm
Surface treatment: Glare (Haze 0%)
Display colors: 262,144 6 Bit
Backlight: LED
Rohs Comply: yes
