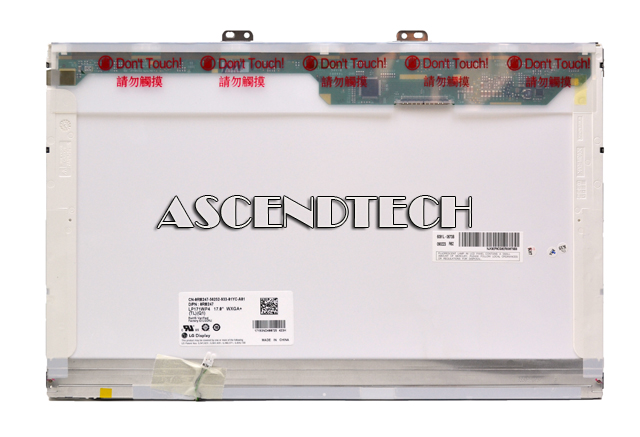

LG Display 17" TFT CCFL LCD Screen Panel

The LG Display LP171WP4 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 17.1 inches diagonally measured active display area with WXGA+ resolution(900 vertical by 1440 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP171WP4 has been designed to apply the interface method that enables low power, high speed, low EMI. The LP171WP4 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP171WP4 characteristics provide an excellent flat display for office automation products such as Notebook PC.

*Please Note, This Item Is Used And Does Have Minor Scuffs And Scratches, But Is Fully Operational And Functions As Intended!

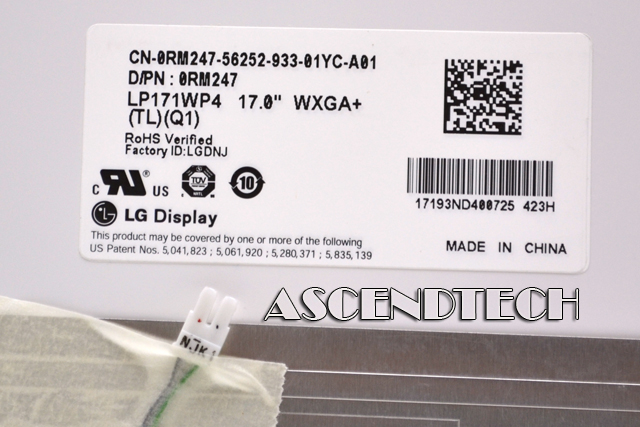

Compatible part numbers: LP171WP4 (TL)(Q1)
Dell part Numbers: RM247 0RM247 CN-0RM247


Specifications:

Display area: 382.2 (H) x 244.5 (V) (17.1”diagonal)
Driver element: a-Si TFT active matrix
Number of pixel: 1440 x 900 pixel
Pixel Format: RGB strip arramgement
Pixel pitch: 0.255 (H) x 0.255 (V) (TYP.) mm
Surface treatment:  Haze 0 Hardness 3H
Display colors: 262,144 6 Bit
Weight: 720g (Max)
Backlight: CCFL
Rohs Comply: yes
