LGA1366 INTEL X58 CHIPSET DDR3 MBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

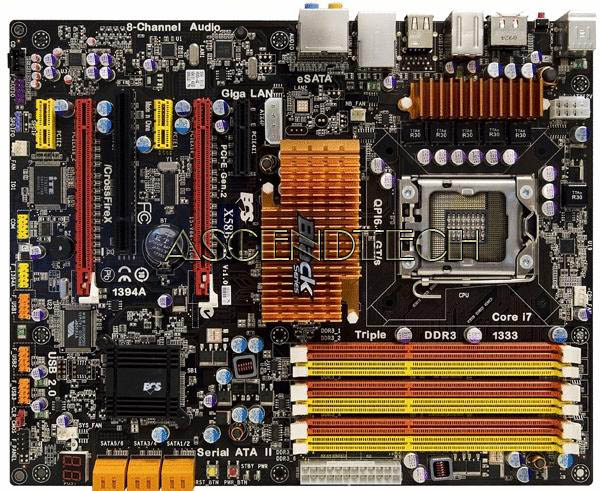

Lga1366 Intel X58 Chipset Ddr3 Mboard. Model: Lga1366 X58 Universal Mb
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBLGA1366UNIVKT
Brand House Brand
Model LGA1366 X58 UNIVERSAL MB
Category Intel Lga1366 Motherboards

Description

LGA1366 Intel X58 Chipset CrossFireX & nVidia SLI DDR3-1600 Dual-PCI-Express Motherboard For Intel Core i7 Processors (CPU).

Specifications:

  • CPU: LGA 1366 Socket Support Intel Core i7 processors; QPI 4.80GT/s to 6.40GT/s; 6 Phase Power Design w/ VRD 11.1 Compliant
  • Chipset: Intel X58 & ICH10R
  • Memory: 6x 240pin DDR3-1600(OC)/1333/1066/800 DIMMs, Triple Channel, Max Capacity 24GB
  • Slots: 2x PCI-Express x16 Slots (Support PCI-Express 2.0, Support ATI CrossFireX and nVidia SLI); 1x PCI-Express x4 Slot; 2x PCI-Express x1 Slots; 1x PCI Slots
  • SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 0 + 1(by Intel ICH10R); 2x eSATA2(by JMB362)
  • Audio: Realtek ALC 888S-VC 8-Channel High Definition Audio CODEC
  • LAN: Realtek 8111C PCIe GigaLAN Controller
  • Ports: 12x USB 2.0 Ports (6 rear, 6 by headers); 2x eSATA Port; 1x IEEE1394 Port; 2x PS/2 Ports; 1x RJ45 LAN Ports; 1x Clear_CMOS Button; Audio I/O Jacks
  • Power Connector: 1x 24pin Main Power, 1x 8-pin 12V Connector
  • Form Factor: ATX, 30.5 x 24.4 cm
