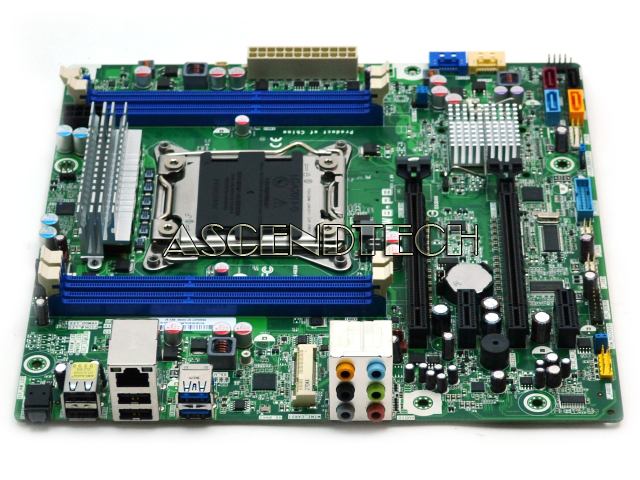

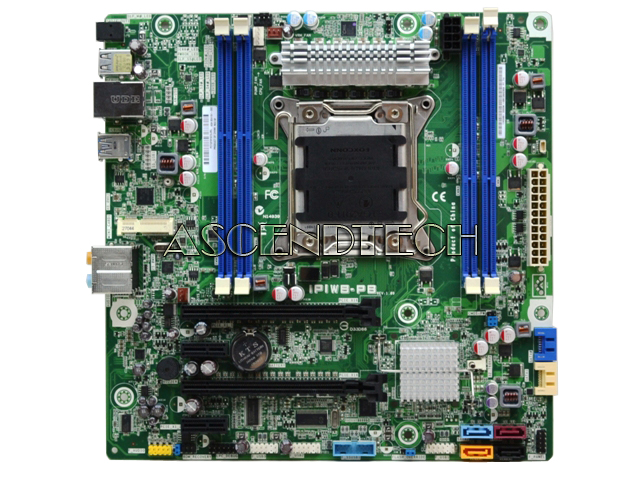

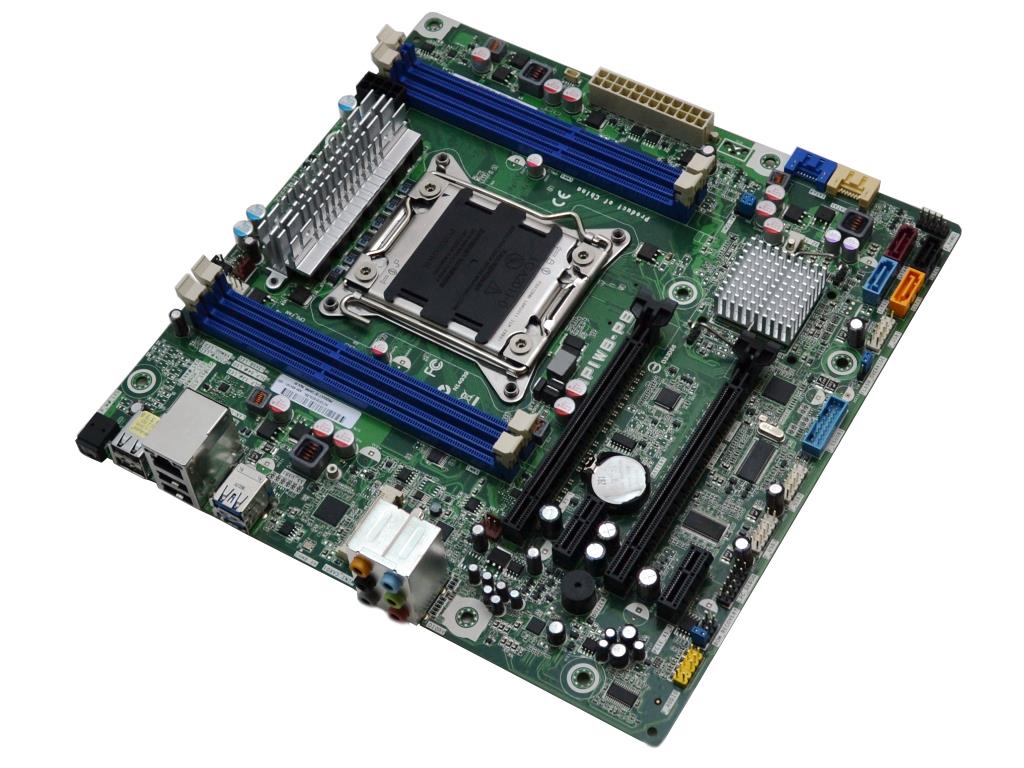

LGA2011 Intel X79 DDR3 Motherboard No IO

Intel Socket LGA2011 X79 Express Chipset DDR3 Motherboard. These boards meet the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Specifications:

Chipset: Intel X79 Express
Form Factor: uATX 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)
FSB: DMI2 (Direct Media Interface) bus: 2 GB/s unidirectional

Processor Support Info:
TDP: 130W
Socket type: LGA 2011
Motherboard supports the following processor upgrades:
Intel 38xx (Sandy Bridge-E) Quad core processor
Intel 39xxK (Sandy Bridge-E) Six-core processor
Intel 39xxX (Sandy Bridge-E) Six-core processor
Intel i7-38xx Quad core processor

Memory Upgrade Info:
Four-channel memory architecture
Four 240-pin DDR3 DIMM sockets
Supports the following:
PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
Non-ECC memory only, unbuffered
Supports 1 GB, 2 GB, 4 GB and 8 GB DIMMs
Supports up to 4 GB on 32-bit systems
NOTE: 32-bit systems cannot address a full 4.0 GB of memory
Supports up to 32 GB on 64-bit systems

Video:
Integrated graphics are not available on this motherboard.
Two PCI Express x16 slots (Gen 2.0)

Audio:
Audio codec: IDT 92HD89E
7.1 channel audio
Beats Audio support: yes

Network:
Interface: Integrated into motherboard
Technology: RTL8171EH-CG gigabit ethernet controller
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000-Base-T Ethernet

Expansion Slots:
Two PCI Express x16 (Gen 2.0)
Two PCI Express x1 (Gen 2.0)
One PCI Express Mini Card

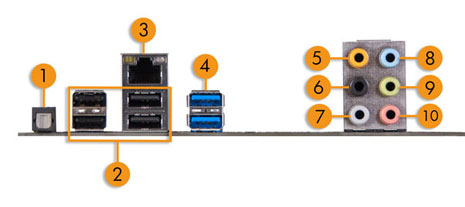

Back I/O Ports:
1 - S/PDIF
2 - USB 2.0: 4
3 - LAN (ethernet)
4 - USB 3.0: 2
5 - Audio: center/subwoofer
6 - Audio: rear speaker out
7 - Audio: side speaker out
8 - Audio: line-in
9 - Audio: line-out
10 - Audio: microphone

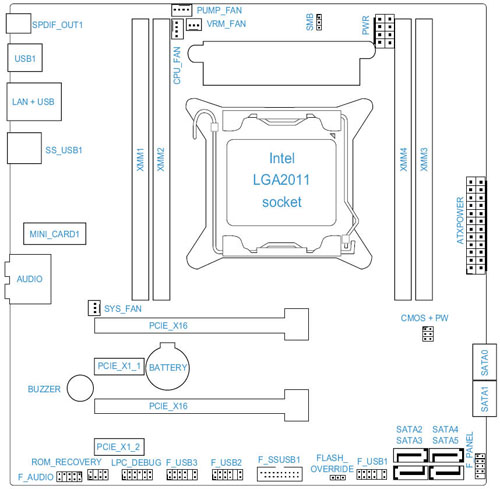

Internal Connectors:
1x ATX power connector
1x EATX 12V power connector
1x CPU fan connector
1x System fan connector
1x VRM fan connector
1x Pump fan connector
6x SATA 3.0 connectors
1x Front panel audio connector
1x ROM recovery connector
1x SMB connector
1x Front panel connector
3x USB 2.0 connectors
1x USB 3.0 connectors
