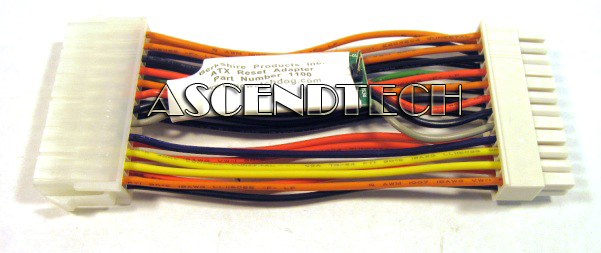

Lot of 25 Dell ATX Reset Adapter YP356

Lot of 25 Genuine Original Dell ATX Reset Adapter YP356 0YP356 CN-0YP356.

Dell Part Number: YP356 0YP356 CN-0YP35.



Specifications:

ATX-24 Pinouts
Pin Signal Wire Color Pin Signal Wire Color
1 +3.3V Orange 13 +3.3VDC
(+3.3V Sense) Orange
(Brown)
2 +3.3V Orange 14 -12V Blue
3 COM (GND) Black 15 COM (GND) Black
4 +5.0V Red 16 Power On Green
5 COM (GND) Black 17 Com (GND) Black
6 +5.0V Red 18 COM (GND) Black
7 COM (GND) Black 19 COM(GND) Black
8 Power Good Gray 20 -5V1 White
9 +5V Standby Purple 21 +5V Red
10 +12V Yellow 22 +5V Red
11 +12V Yellow 23 +5V Red
12 +3.3V Orange 24 COM (GND) Black

ATX-20 Pinouts
Pin Signal Wire Color Pin Signal Wire Color
1 +3.3V Orange 11 +3.3VDC
(+3.3V Sense) Orange
(Brown)
2 +3.3V Orange 12 -12V Blue
3 COM (GND) Black 13 COM (GND) Black
4 +5.0V Red 14 Power On Green
5 COM (GND) Black 15 Com (GND) Black
6 +5.0V Red 16 COM (GND) Black
7 COM (GND) Black 17 COM(GND) Black
8 Power Good Gray 18 -5V1 White
9 +5V Standby Purple 19 +5V Red
10 +12V Yellow 20 +5V Red

Note 1: -5V is not included on newer ATX power supplies.

Warning
Some older Dell PCs (earlier 2000 models) have the standard ATX connector on their motherboard but their pin-outs do not conform to the ATX pin-out specifications. Before you order or use this product check the pin-outs and color code in these tables to see if your model adheres to the ATX specification.
