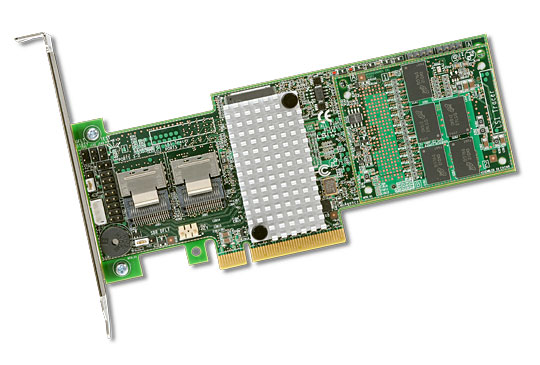

LSI 9265-8i SAS MegaRAID Dual Core ROC

LSI MegaRAID SAS 9265-8i RAID controller Card. Second generation 6Gb/s SATA+SAS with unprecedented levels of performance ideal for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs) unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments meets high I/O transaction demands of database and datacenter applications provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments.

Solution Provided
Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)
Physical Dimensions
MD2 Low profile (6.6" X 2.536")
Internal Connectors
Two Mini-SAS SFF8087 internal connectors
Device Support
Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type
x8 lane PCI Express 2.0 compliant
Data Transfer Rates
Up to 6Gb/s per port
I/O Processor/SAS Controller
LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory
1 GB 1333MHz DDRIII SDRAM
Battery Backup Unit
LSIiBBU09, a heat-tolerant intelligent battery back-up module; remote mount
Key RAID Data Protection Features
RAID levels 0, 1, 5, and 6
RAID spans 10, 50, and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SafeStore™ Encryption Services
Instant Secure Erase
(Full SafeStore Encryption key sold separately)
SSD Support with SSD Guard™
Patrol read for media scanning and repairing
64 logical drive support
Up to 64TB LUN support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T. support
Global and dedicated Hot Spare with Revertible Hot Spare support
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management
SES (inband)
SGPIO (sideband)
Operating Temperature
Maximum ambient: 60°C (55°C w/iBBU)
Operating Voltage
+3.3V
