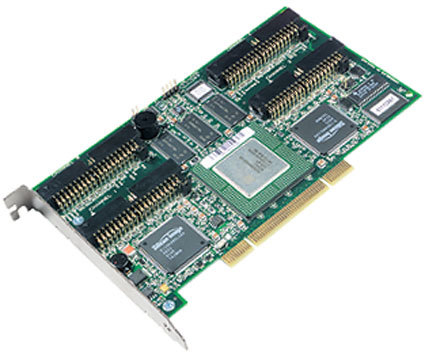

LSI 9K646 MegaRAID IDE ATA CONTROLLER

Dell 9K646 LSI MegaRAID i4 IDE ATA-10 RAID Series 511. Built around proven SCSI MegaRAID technology, the MegaRAID i4, is a half-size, PCI four-channel IDE RAID adapter.With support for all major OSs and RAID levels 0, 1, 5 and more, the adapter is positioned to be the industrys premier high performance, low-cost RAID solution. This card allows you to create cost-effective redundant RAID storage from Parallel ATA (IDE) hard disk drives
The i4 provides a uniform look and feel for SCSI and IDE storage management.

Specifications:

PCI short card
Integrated I/O processor
All ATA drive modes supported up to UDMA 100
Re-flashable BIOS
RAID Levels 0, 1, 3, 5, 10, 30, and 50 supported
Supports all major OSs
Two IDE controllers to four channels
16 MB of integrated ECC SDRAM Memory
Multi-controller support
Advanced management and configuration utilities
Supports up to 40 logical drives and 8 physical drives per controller
Auto resume during array reconstruction
Background initialization for Quick RAID 5 setup
FlexRAID: Online capacity expansion Online RAID level migration
Random logical drive deletion without bringing the system down
