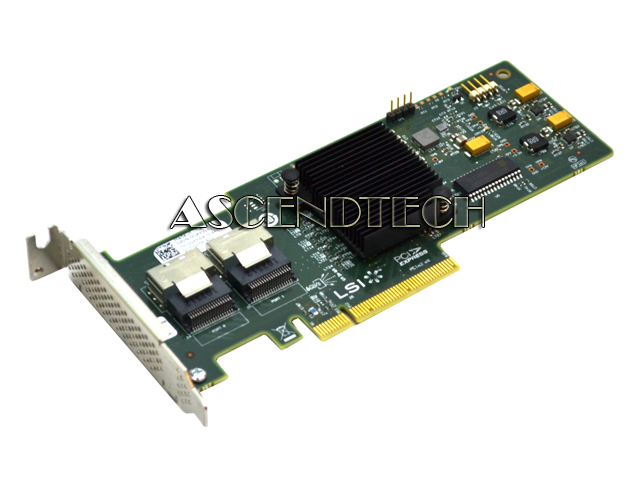

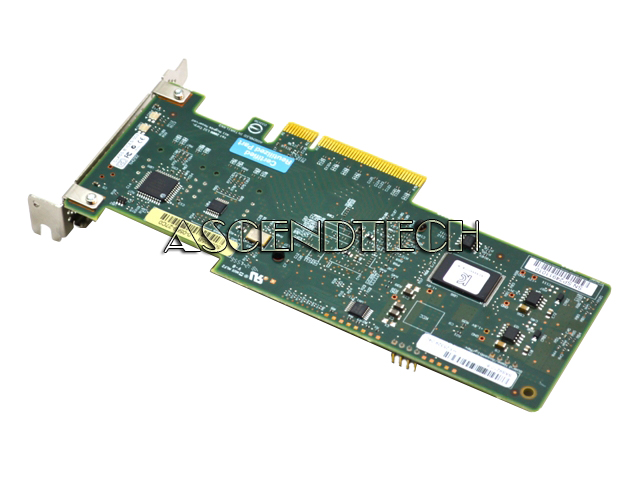

LSI Internal SATA SAS 9210-8i Controller
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code CNRCLSISAS92108
Brand Lsi Logic
Model SAS 9210-8i GKPW4 TH-0GKP
Category Sata & Sas Raid Controller Cards
Description
LSI Internal SATA/SAS 9210-8i 6Gb/s PCI-Express 2.0 RAID Controller Card. For server and storage OEMs targeting power-sensitive applications, the SAS 9210-8i 6Gb/s SAS Host Bus Adapter provides internal storage connectivity and basic data protection. Designed for mid-sized storage servers and other mid-range applications.
- Connect up to 256 SAS and SATA devices with 8 internal 6Gb/s SAS ports
- Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor
- Bandwidth to support mid-range applications with PCIe® 2.0 interface
- Deliver data protection with integrated RAID for redundancy and high availability in environments where advanced RAID levels are not desired
LSI Part Number: SAS 9210-8i
Dell Part Numbers: GKPW4 0GKPW4 TH-0GKPW4
Compatible Part Numbers: 500605B H3-25329-04C 0-05F9-27C0
Specifications:
| Lifecycle | Active |
| Host Bus Type | x8 lane PCI Express® 2.0 |
| Physical Dimensions | Low profile (2.6” x 6.6”) |
| Devices Supported | 256 Non-RAID SAS/SATA devices |
| Fusion MPT Support | Fusion MPT™ 2.0 |
| Internal Connectors | 2 Mini-SAS SFF8087 (vertival) |
| Operating Temperature | 0°C to 55°C |
| Operating Voltage (V) | +12V +/-8%, 3.3V +/-8% |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware®, FreeBSD |
| PCI Power | 7W Typical (Airflow min 200 LFM) |
| Cable Support | Passive Copper |
| I/O Controller | LSI SAS2008 |
| MTBF | > 2,000,000 hours |
| Operating Humidity | 5% to 90% Non-condensing |
| Brackets | Low profile |
| Regulatory Certifications | Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), RoHS, Safety: EN60950, WEEE |
| Data Transfer Rates | 6Gb/s SAS-2 Compliant |
