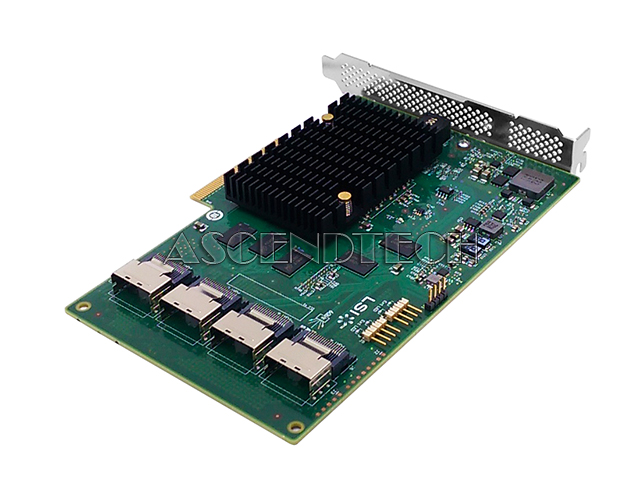

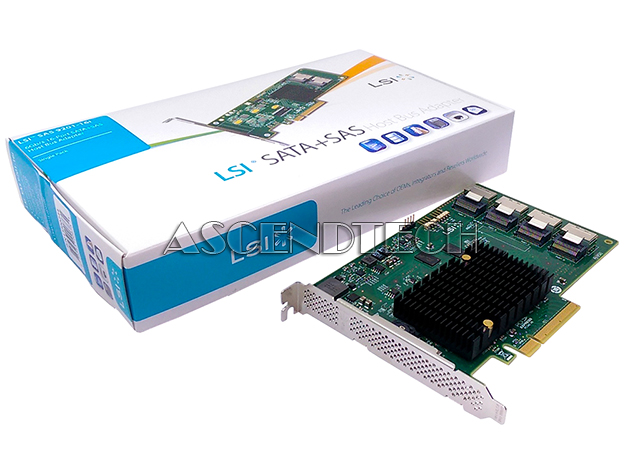

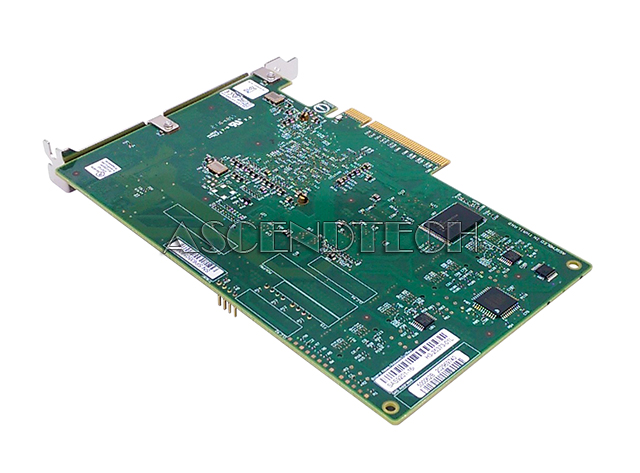

LSI SAS 9201-16i 16-Port Host Bus Card

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Lsi Sas 9201-16I 16-Port Host Bus Card. Model: H3-25373-01L Lsi00244
  Enlarge
Lsi Sas 9201-16I 16-Port Host Bus Card. Model: H3-25373-01L Lsi00244
Lsi Sas 9201-16I 16-Port Host Bus Card. Model: H3-25373-01L Lsi00244
Lsi Sas 9201-16I 16-Port Host Bus Card. Model: H3-25373-01L Lsi00244
Lsi Sas 9201-16I 16-Port Host Bus Card. Model: H3-25373-01L Lsi00244
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code CNTRHLSI920116I
Brand Lsi Logic
Model H3-25373-01L LSI00244
Category Sata & Sas Raid Controller Cards
Condition New Open Box
Condition Description Please note, this unit comes with manuals and documentation.

Description

LSI SAS 9201-16i 6Gb/s 16-Port PCI-Express 2.0 x8 SATA+SAS Host Bus Adapter Card H3-25373-01L LSI00244.

Model Number: SAS 9201-16i
LSI Part Number: H3-25373-01L LSI00244







Features:

- Up to 6Gb/s per SAS port data transfer rates
- PCI Express 2.0 x8 ost interface
- Support for both SAS and SATA drives / up to 512 devices
- Integrated RAID 0, 1, 1E, and 10
- Fusion-MPT Architecture provides over 275,000 I/O's per second
- Backwards compatible with 3Gb/s SATA and SAS devices
- 16 internal ports / 4 internal Mini-SAS connectors (SFF8087)
- LSISAS2116 controller
