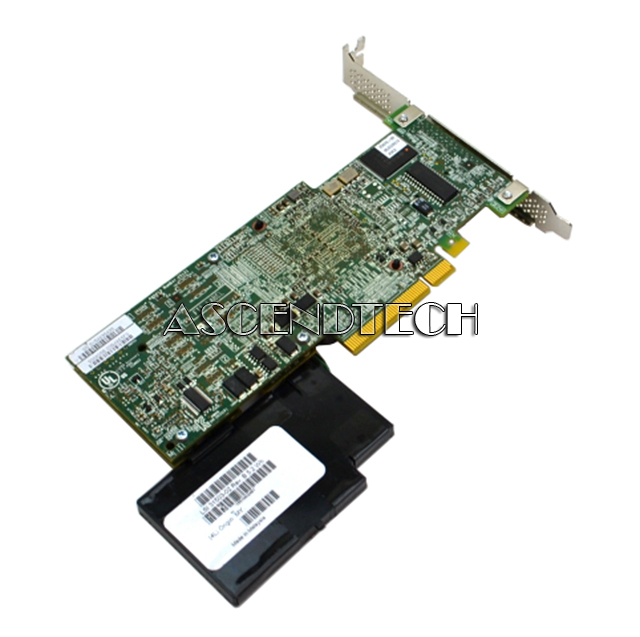

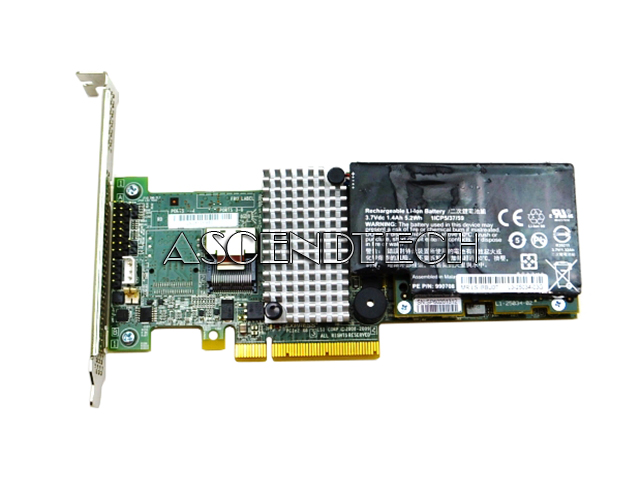

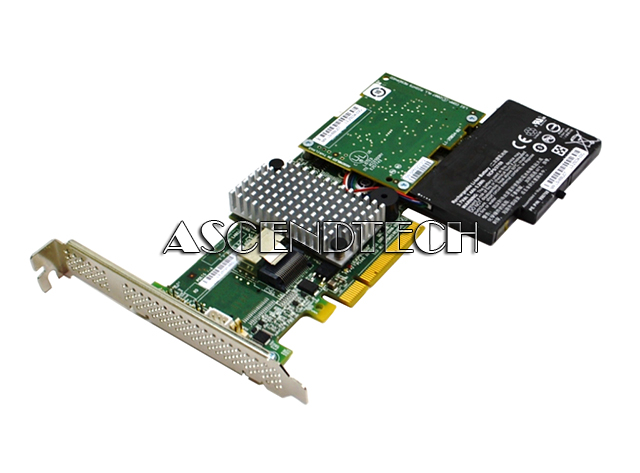

LSI SAS 9260-4i FH Raid Card W/ Battery
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item CodeRDCRDL32512186C
BrandLsi Logic
ModelSAS 9260-4i
Part NumberL3-25121-86C
CategorySata & Sas Raid Controller Cards
ConditionLike New Grade A
Condition DescriptionPlease note, this unit was removed from a working machine, it may have minor scuffs and scratches from the removal process, but is fully operational & functions as intended! Comes with Battery Interface Card and Battery Installed!
Description
LSI SAS 9260-4i MegaRAID 512MB Cache 4-Port PCI-Express 2.0x8 SAS/SATA 6Gb/s Raid Controller Card L3-25121-86C.
Memory Type: DDRII
Speed: 800MHz
Data Transfer Rate: 6Gb/s
Storage Interface: SAS/SATA
Cache: 512MB
RAID Support: 0, 1, 5, 6, 10, 50, 60
Connectors: 1x Mini-SAS SFF-8087 internal connector
Input/Output Ports: 4x internal SAS/SATA
Interface: PCI-Express 2.0x8
Battery Voltage: 3.7Vdc
Battery Watt-Hour (Wh): 5.2Wh
Battery Capacity (mAh/Ah): 1.4Ah
Battery Type: Li-Ion
Form Factor: Low Profile
Bracket/Profile Type: Full Height Bracket
Type: Raid Controller Card
Features: Battery Model: LSiBBU07, P/N: L3-25034-03G; Battery Interface Card P/N: L1-25034-02
