LSI SAS 9270-8i 6Gb/s SATA ROC Raid Card

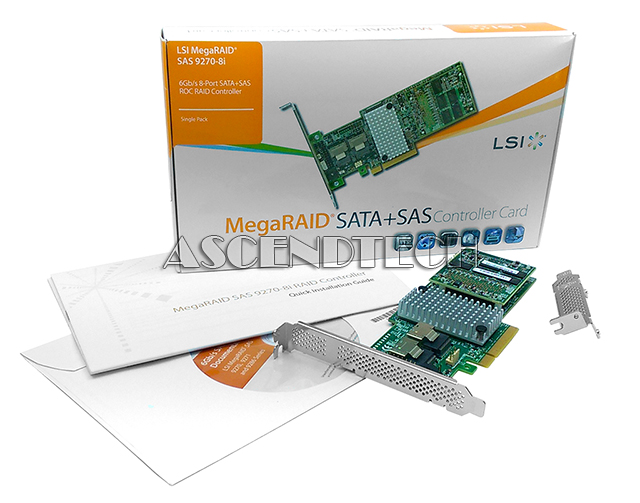

LSI SAS 9270-8i MegaRAID 6Gb/s 8-Port PCI-E 3.0 SATA+SAS ROC RAID Controller Card L3-25422-29B LSI00326.

Model Number: SAS 9270-8i
LSI Part Number: L3-25422-29B LSI00326







Features:

- Up to 6Gb/s per port data transfer rates
- PCI Express host interface
- Support for 3Gb/s and 6Gb/s SAS and SATA drives
- Onboard ECC DDR3 SDRAM







Specifications:

Solution Provided: Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)
Internal Connectors: Two Mini-SAS SFF8087 internal connectors (top mount)
Device Support: Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type: x8 lane PCI Express 3.0 compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor/SAS Controller: LSI SAS 2208 Dual-Core RAID on Chip (ROC)
Cache Memory: 1GB 1333MHz DDRIII SDRAM
Cache Protection: MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Key RAID Data Protection Features:
- RAID Levels 0, 1, 5, and 6
- RAID spans 10, 50, and 60
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Variable stripe size support
- Fast initialization for quick array setup
- Patrol Read
- Single controller multi-pathing (failover)
- I/O load balancing
- Automatic rebuild of hot spare drives
- Revertible Hot Spare support
- Enclosure management (SES and SGPIO)
- Auto Resume on array rebuild and reconstruction
- Configuration on Disk (COD)
- S.M.A.R.T support
- Optional Cache Protection Module
