Marvel Wireless N Mini PCI-E WiFi Card
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code LTPWGAT6008131R
Brand Gateway
Model 6008131R MC85 WN6500M
Category Laptop Wireless Cards - Wifi
Description

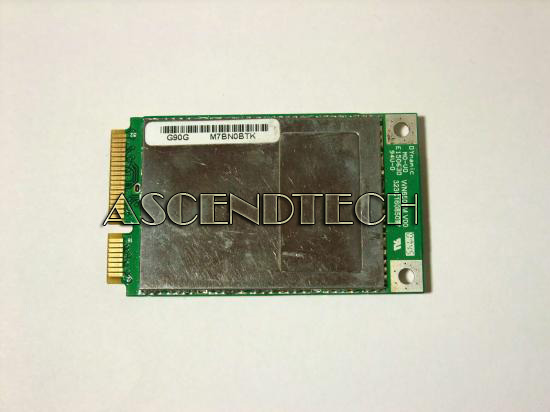

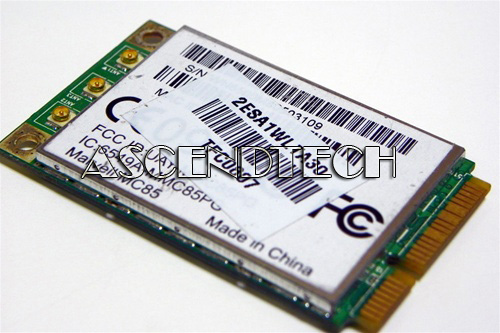

Genuine Original Marvell MC85 802.11N Wireless N WiFi Laptop Card WN6500M 6008131R.
Marvell Model Number: MC85
Compatible Part Numbers: 6008131R
Compatible Models: Gateway M-1617, M-1618, M1618N, M1618R, M-6319, M6750, M-6750H, M6752, M6755
| Feature | Description |
|---|---|
| Manufacturer | Lite On |
| Model | WN6500M |
| Standard | IEEE802.11a; IEEE802.11b; IEEE 802.11g; Draft IEEE 802.11n |
| Bus Interface | PCI Express |
| Data Rate | 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: 20 MHz BW: 130, 1117, 104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 40 MHz BW: 270, 243, 216, 162, 150, 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 |
| Media Access Control | CSMA/CA with ACK |
| Modulation Techniques | 802.11b: CCK, DQPSK, DBPSK 802.11a/g: 64 QAM, 16 QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| Network architecture | Ad-hoc mode (Peer-to-Peer) Infrastructure mode |
| Operating Channel | 2.4GHz 11: (Ch. 1-11) � United States 13: (Ch. 1-13) � Europe 14: (Ch. 1-14) � Japan 5GHz |
| Frequency Range | 802.11 b and g: 2.412 to 2.4835 GHz 802.11a: 5.15 to 5.85 GHz |
| Transmit Output Power |
|
| Receiver Sensitivity |
|
| Security | WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE 802.11x, IEEE 802.11i |
| Operating Voltage | 3.3 V ±5% I/O supply voltage |
| Power Consumption |
|
| Antenna Type | 3 antenna connector |
| Temperature | Operating: 0 to 50° C (32 to 122° F) Non-operating: -20 to 70° C (-4 to 158° F) |
| Relative Humidity: | Operating: 5 to 90% (non-condensing) Non-operating: 5 to 95% (non-condensing) |
| Dimensions (L × W × H) | 1.18 × 2.01 × 0.129 inch (30 × 50.95 × 3.30 mm) |
| Weight | 13 grams (0.46 ounces) |
