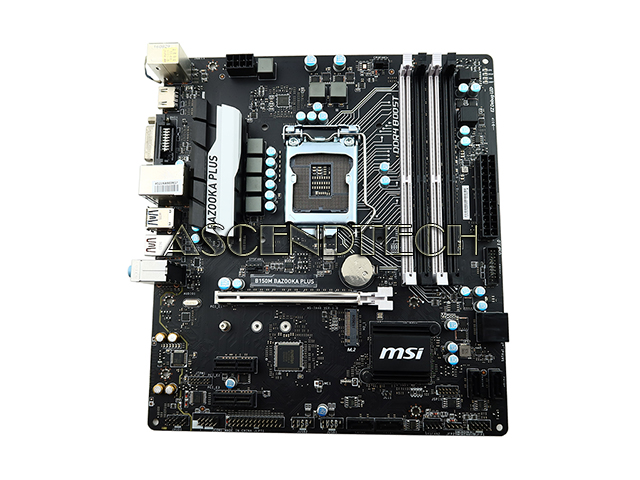

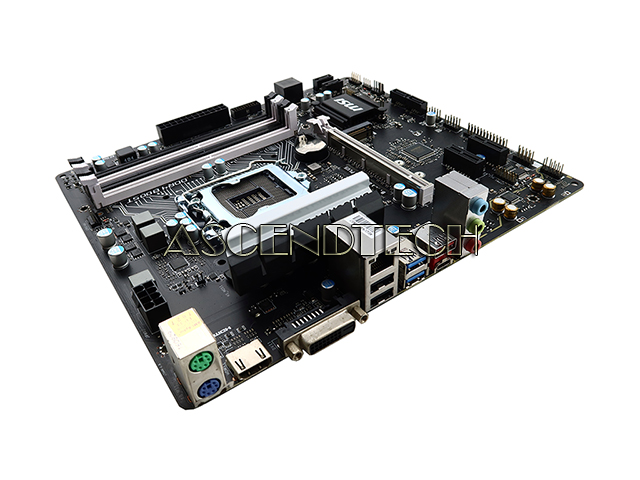

MSI B150M BAZOOKA PLUS Mboard No I/O

Chipset: Intel B150

Socket: Intel LGA1151

Compatible/Supported CPU: 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

Wireless Lan Support: Realtek RTL8111H Gigabit LAN controller

Audio: Realtek ALC887 Audio Codec

Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Clear CMOS jumper; 1x Front panel audio connector; 2x Front panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Parallel port connector.

Input/Output Ports: 1x PS/2 keyboard port; 1x PS/2 mouse port; 1x HDMI port; 1x DVI-D port; 1x LAN (RJ45) port; 2x USB 2.0 ports; 3x USB 3.1 Gen1 ports; 1x USB 3.1 Gen1 Type-C port; 3x audio jacks.

Expansion Slots: 1x PCIe 3.0 x16 slot; 2x PCIe 3.0 x1 slots.

Form Factor: Micro ATX

Type: Desktop Motherboard

Features: Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket; Supports DDR4-2133 Memory; DDR4 Boost: Give your DDR4 memory a performance boost; GAMING LAN: The best online gaming experience with lowest latency; GAMING DNA: LED ambient lights are added to give it an awesome look & feel, ready for battle; Audio Boost: Reward your ears with studio grade sound quality; Military Class 4: Top Quality & Stability; Guard-Pro: Improved Protection and Power Efficiency; Turbo M.2 32Gb/s + SATA 6Gb/s; Click BIOS: Secure and Reliable UEFI BIOS solution; EZ Debug LED: Easiest way to troubleshoot; Overvoltage Protection:Prevent Unforeseen Damage; 4K UHD Support: Ultra-high Definition Visual Experience; Intel SBB Support: Improves Productivity, Management and Serurity.
