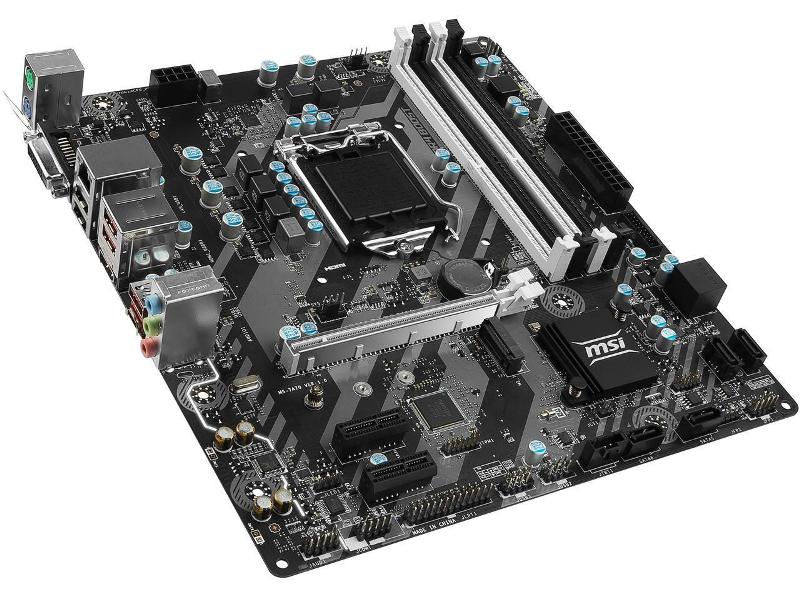

MSI B250M BAZOOKA LGA 1151 Motherboard

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151

Supported CPU Technologies

* Not Compatible with Intel 8th Gen CPUs

Chipsets

Chipset

Intel B250

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Memory

Number of Memory Slots

4×288pin

Memory Standard

7th Gen processors support DDR4 2400/ 2133*
6th Gen processors support DDR4 2133*

* DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCIe 3.0 x16 slot (supports x16 mode)

PCI Express x1

2 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2 slot (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280 storage devices
- Intel Optane Memory Ready

* The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Realtek 8111H

Max LAN Speed

10/100/1000Mbps

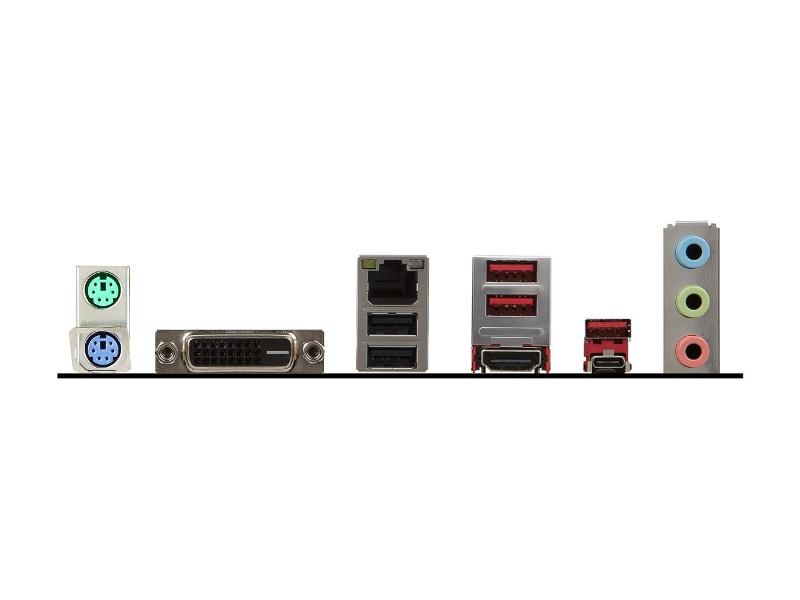

Rear Panel Ports

PS/2

1 x PS/2 keyboard port
1 x PS/2 mouse port

Video Ports

1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.1

3 x USB 3.1 Gen1 Type-A ports
1 x USB 3.1 Gen1 Type-C port

USB 1.1/2.0

2 x USB 2.0 Type-A ports

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

Other Connectors

1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED connecotr
1 x TBT connector
1 x Clear CMOS jumper

Physical Spec

Form Factor

Micro ATX

LED Lighting

RGB

Dimensions (W x L)

9.6" x 9.0"

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

Features

Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket

Supports DDR4-2400 Memory (Max.)

DDR4 Boost: Give your DDR4 memory a performance boost

VR Ready: Best virtual reality game experience without latency
