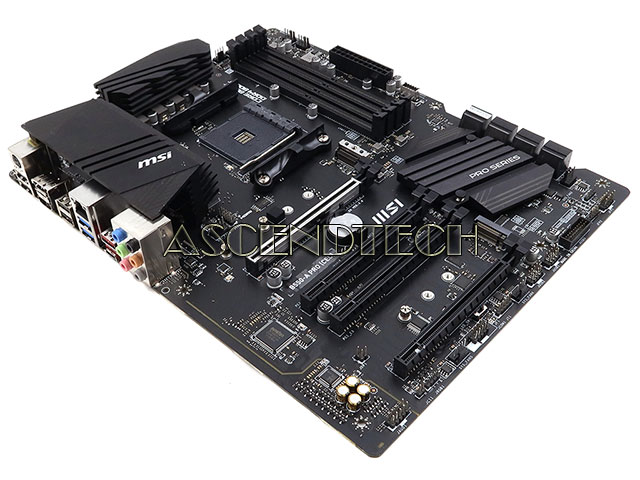

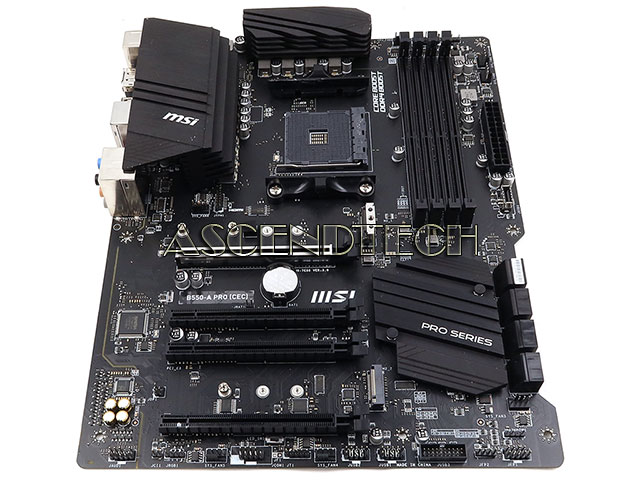

B550-A PRO (CEC) 601-7C56-140B | Msi B550-A Pro (Cec) Motherboard No I/O

MSI B550-A PRO (CEC) AMD Chipset B550 Socket AM4 DDR4 HDMI DisplayPort SATA 6Gb/s ATX Desktop Motherboard 601-7C56-140B.

Chipset: AMD B550

Socket: AMD AM4

Compatible/Supported CPU: Supports AMD Ryzen 5000 & 3000 Series

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: 0, 1, 10

Network/Communications: Realtek 8111H Gigabit LAN controller

Audio: Realtek ALC892/ALC897 Codec

Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector, 2x USB 2.0 connectors, 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 1x TPM module connector, 1x Clear CMOS jumper

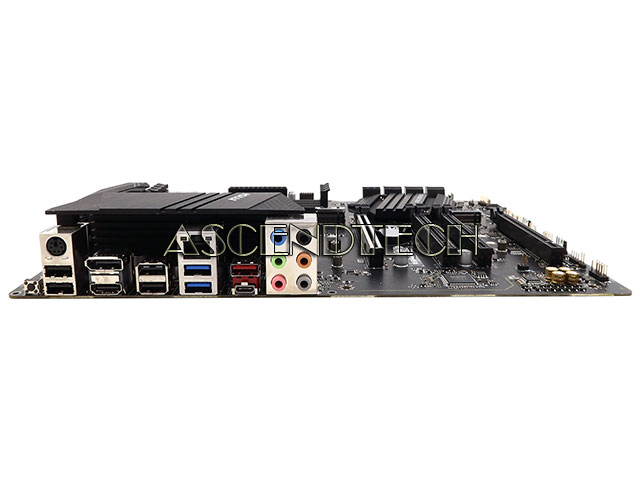

Input/Output Ports: 1x Keyboard / Mouse, 1x DisplayPort, 1x LAN port, 1x USB 3.2 Gen2, 6x Audio connector, 4x USB 2.0, 1x HDMI, 1x USB 3.2 Gen1, 1x USB-C 3.2 Gen2

Expansion Slots: 3x PCIe 3.0 x16, 1x PCIe 4.0/ 3.0 x16, 8x SATA 6Gb/s, 2x M.2 slots (Key M)

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Additional Specifications:

CPU Support

Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Special Features

-Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
-PCI-E Steel Armor Protecting VGA cards against bending and EMI
-Front Type-C USB 3.2 Gen 1 5Gbps Compatible with the latest PC chassis and perfect for external drives and other mobile devices.
-M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability.
-Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
-EZ Debug LED Easiest way to troubleshoot.
-Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

MSI B550-A PRO (CEC) Motherboard No I/O
